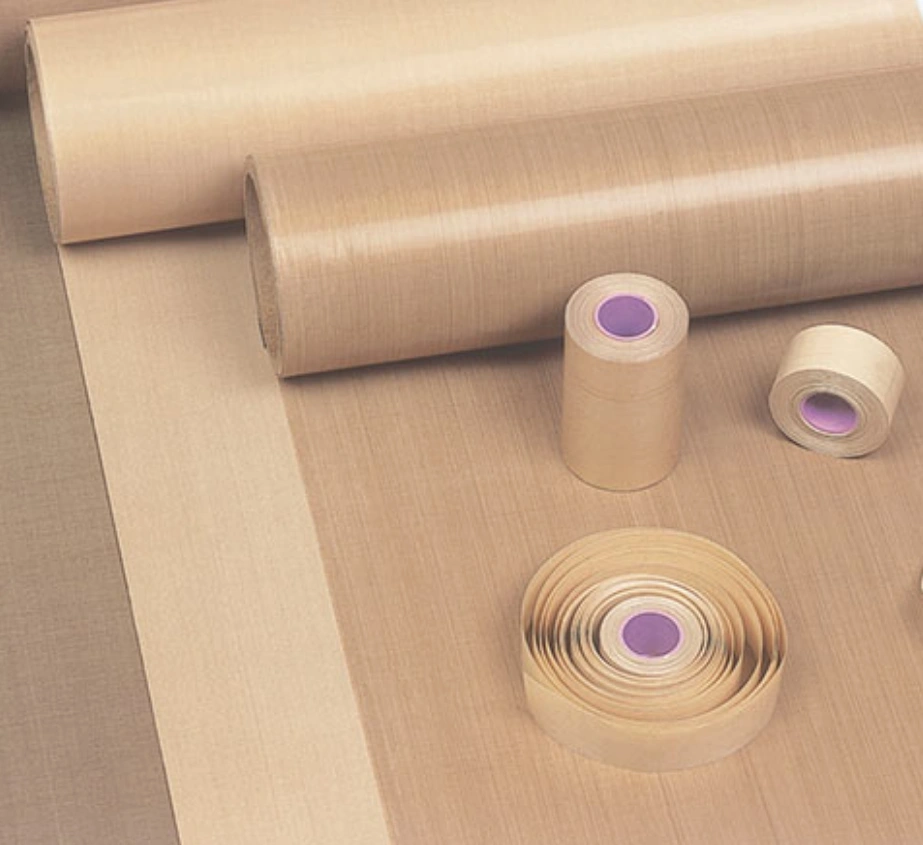

PTFE coated fiberglass fabrics are made of fiberglass fabrics with both sides PTFE dispersion impregnated. It's Operational and dimensionally stable from -100°F (-73° C) to +550°F (+288°C), with excellent release characteristics, low surface friction, abrasion and Chemical resistant, also FDA compliant for food processing. We offer a full range of PTFE (Teflon®) fabrics tailored to diverse applications, including abrasive-resistant fabrics, welding release fabrics, food-processing fabrics, tortilla-conveyor belting fabrics, porous fabrics, thermal insulation jacketing fabrics and expansion joint fabrics.
| Premium Grade PTFE Coated Fiberglass Fabrics Premium Grade PTFE Coated Fiberglass Fabrics are with higher level of PTFE coated with high quality fiberglass fabric. Its surface showing a very smooth, low friction characteristics. It also has excellent abrasion, high temperature, chemical resistance, the best release and good tensile strength. Premium Grade PTFE Coated Fiberglass Fabrics is mainly used in some special applications requiring an extremely smooth surface. |
||||
| Code | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
Tensiles (N/5cm) |
| T008-155 | 1000, 1250 | 0.08 | 155 | 600 |
| T013-270 | 1000, 1525 | 0.13 | 270 | 1100 |
| T015-320 | 1000 | 0.15 | 320 | 1100 |
| T024-520 | 1000, 1500 | 0.24 | 520 | 2100 |
| T028-580 | 1000, 1500 | 0.28 | 580 | 2300 |
| T035-720 | 1000, 1500, 2200 | 0.35 | 720 | 2700 |
| Standard Grade PTFE Coated Fiberglass Fabrics Standard Grade PTFE Coated Fiberglass/Glass Cloth possesses an optimal ptfe content, and leaves a middle fabric impression. As the most widely used ptfe coated fiberglass cloth, our standard grade cloth provides a superior smooth, non stick surface and a high temperature remarkable release characteristics. Our Standard PTFE Coated Fiberglass Cloth serves the largest range of industrial and general purpose applications. |
||||
| Code | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
Tensiles (N/5cm) |
| T0075-135 | 1000, 1250, 1500 | 0.075 | 135 | 600 |
| T0125-255 | 1000, 1250, 1500 | 0.125 | 255 | 1100 |
| T014-296 | 1000, 1250, 1500 | 0.14 | 296 | 1100 |
| T023-490 | 1000-2800 | 0.23 | 490 | 2100 |
| T033-680 | 1000-2600 | 0.33 | 680 | 2700 |
| Industrial Grade PTFE Coated Fiberglass Fabrics Industrial grade ptfe coated fiberglass cloth has medium level of PTFE content. This cloth is cheaper than standard grade, but it can achieve cost effective performance in the manufacure of heat-sealing bags, release sheets, baking liners, so industrial grade ptfe coated glass cloth has been widely used in some large volume industrial applications which is more sensitive to the price. |
||||
| Code | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
Tensiles (N/5cm) |
| T007-110 | 1000, 1250, 1500 | 0.07 | 110 | 600 |
| T010-170 | 1000, 1250, 1500 | 0.1 | 170 | 1100 |
| T011-220 | 1000, 1250, 1500 | 0.11 | 220 | 1100 |
| T021-420 | 1000-2800 | 0.21 | 420 | 2100 |
| T022-450 | 1000-2800 | 0.22 | 450 | 2100 |
| Anti-Static Grade PTFE Coated Fiberglass Fabrics Anti-Static PTFE Coated Fiberglass Fabrics are supplied with carbon to reduce static build up. This product contains a proprietary static dissipation additive to eliminates static electricity during operation. It provided with an anti-static properties to the material Black anti-static eliminates or reduces static problems in belt and slip sheet applications. Black Anti-Static PTFE Fabrics is ideal as release sheets and as conveyor belts for fusing machines to bond woven & non-woven fabrics. |
||||
| Code | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
Tensiles (N/5cm) |
| T008-155AS | 1000, 1250, 1500 | 0.08 | 150 | 600 |
| T011-220AS | 1000, 1250, 1500 | 0.11 | 220 | 1100 |
| T0125-255AS | 1000, 1250, 1500 | 0.125 | 255 | 1100 |
| T022-450AS | 1000-2800 | 0.22 | 450 | 2100 |
| T023-490AS | 1000-2800 | 0.23 | 490 | 2100 |
| T024-530AS | 1000-2800 | 0.24 | 530 | 2100 |
| T033-680AS | 1000-3500 | 0.33 | 680 | 2700 |
| T038-760AS | 1000-3500 | 0.38 | 760 | 2900 |
| Porous Grade Grade PTFE Coated Fiberglass Fabrics Porous Grade ptfe coated fiberglass cloth fabric has lower ptfe content coating and allows air flow through the fabric. Porous/bleeder fabrics allows outgassing of volatile products, and it can aslo used in air circulation for drying and filter, curing processes for textile and screen printing industries. Our Porous Grade ptfe coated fiberglass cloth fabrics has a wide rang of porosity available for customer’s option. |
||||
| Code | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
Tensiles (N/5cm) |
| 006-85P | 1000, 1250, 1500 | 0.06 | 85 | 600 |
| 011-140P | 1000, 1250, 1500 | 0.11 | 140 | 1100 |
| 020-285P | 1000-2600 | 0.2 | 285 | 2500 |
| 032-360P | 1000-2600 | 0.32 | 360 | 3400 |
| PTFE Coated Thermal Insulation Jacketing Fabrics Thermal Insulation Jacketing Fabric is formulated ptfe coated fiberglass cloth which has been specifically designed as a jacketing material for removable insulation blankets and pads Our fabguard fabric can withstand continuous temperatures to 550°F (288°C),offering high temperature protection, flexibility, durability. The formulated PTFE fiberglass composites provides improved water, oil, chemical and abrasion resistance over uncoated fabrics. |
||||
| Code | Coating | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
| T043-560 | one side | 1525 | 0.43 | 560 |
| T046-620 | both sides | 1525 | 0.46 | 620 |
| PTFE Coated/Laminated Fiberglass Fabrics for Expansion Joints Expansion joint fabrics are made from heat-resistant fiberglass base fabrics coated or laminated with PTFE, silicone for enhanced durability. Expansion joint fabrics are flexible, high-temperature-resistant textiles used to seal and protect expansion joints in industrial systems. These joints accommodate thermal expansion, vibration, and movement in pipelines, ducts, boilers, and other equipment while preventing leaks, dust ingress, and heat loss. |
||||
| Code | Treatment | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
| TM035-700 | Lamination | 1500 | 0.35 | 700 |
| TM085-1200 | Lamination | 1500 | 0.85 | 1200 |
| TM110-1700 | Lamination | 1500 | 1.1 | 1700 |
| T035-700 | Coating | 1500 | 0.35 | 700 |
| T085-1200 | Coating | 1500 | 0.85 | 1200 |
| T110-1700 | Coating | 1500 | 1.1 | 1700 |
| PTFE Coated Coated Fiberglass Tortilla Belting Fabrics Our Tortilla ptfe fabrics has been developed to provide the best non-stick, abrasion resistance, non wicking and are able to survive the oil and grease exposure during the stamping and conveying process. We could also access the demands of our customer’s tortilla fabric application,recommending the most suitable coating weight, fiberglass structure, thickness, and the addition of additives for our customers' individual application. |
||||
| Code | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
Tensiles (N/5cm) |
| T020-410TOR | 1000 - 1500 | 0.2 | 410 | 1800 |
| T023-490TOR | 1000 - 1500 | 0.23 | 490 | 2100 |
| T026-550TOR | 1000 - 1500 | 0.26 | 550 | 2300 |
| T030-620TOR | 1000 - 1500 | 0.3 | 620 | 2700 |
| PTFE Coated Fiberglass Fabrics for Carpeting and Flooring PTFE Coated Carpet Belting Fabrics, mainly used in the carpet industry. Our special process allows the resulting fabric to have no micro-pin-holes and micro-mud-cracks, with the best mold release performance, and our carpet fabrics with excellent good abrasion resistance and high tear resistance makes our fabrics to be have a longer life than the similar products on the market. |
||||
| Code | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
Tensiles (N/5cm) |
| T040-810 | 1000 - 2500 | 0.4 | 810 | 3500 |
| T050-900 | 1000 - 2500 | 0.5 | 490 | 4500 |
| T055-1100 | 1000 - 2600 | 0.55 | 1100 | 4500 |
| T070-1100 | 1000 - 2600 | 0.7 | 1100 | 3100 |
| T070-1350 | 1000 - 2600 | 0.7 | 1350 | 3100 |
| T082-1370 | 1000 - 2600 | 0.82 | 1370 | 3300 |
| T095-1640 | 1000 - 2600 | 0.95 | 1640 | 4200 |
| T100-1660 | 1000 - 2600 | 1 | 1660 | 4600 |
| T100-1700 | 1000 - 2600 | 1 | 1700 | 3600 |
| PTFE Welding Release Fabrics Our release fabrics provide a long lasting, non stick surface with excellent chemical resistance. The high release properties of our products prevent the molten PVC from sticking to the metal. The excellent value for thermal transfer are a guarantee for optimal welding results.Therefore, our ptfe release fabrics are widly used as a release medium for PVC window & door welding equipment covering the high temp platens that weld the corners of the PVC window & door extrusion together. Release fabrics are widly used as a release medium for PVC window & door welding equipment covering the high temp platens that weld the corners of the PVC window & door extrusion together. |
||||
| Code | Standard Width (mm) |
Total Thickness (mm) |
Weight (g/m2) |
Tensiles (N/5cm) |
| T013-270 WD | 1000 - 1500 | 0.13 | 270 | 1200 |
| T015-320 WD | 1000 - 1500 | 0.15 | 320 | 1500 |
