| Attribute | Specification |

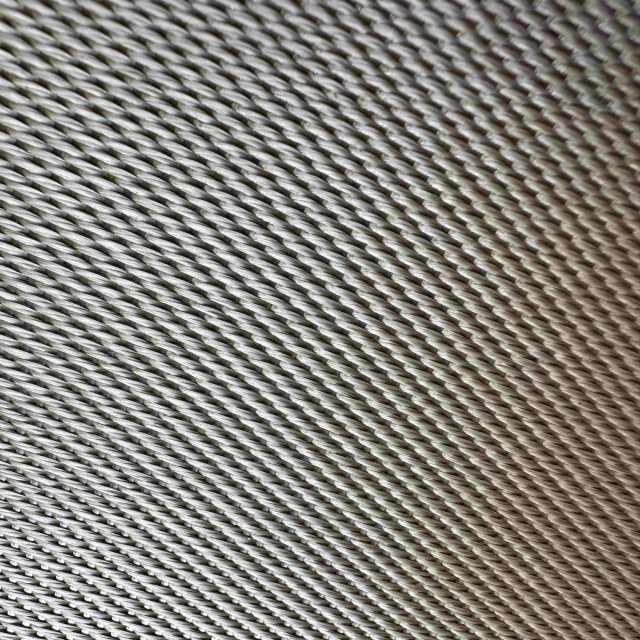

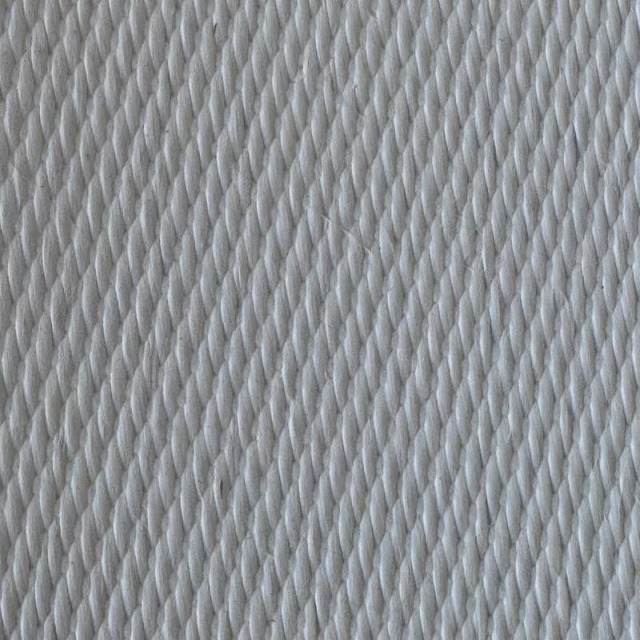

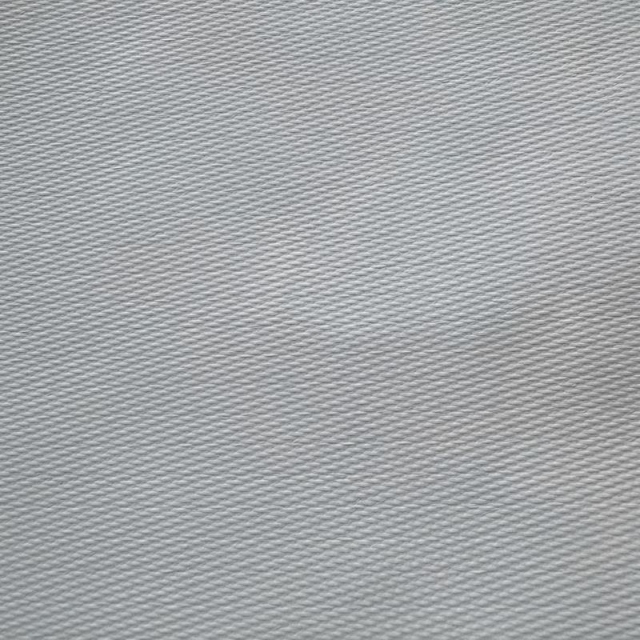

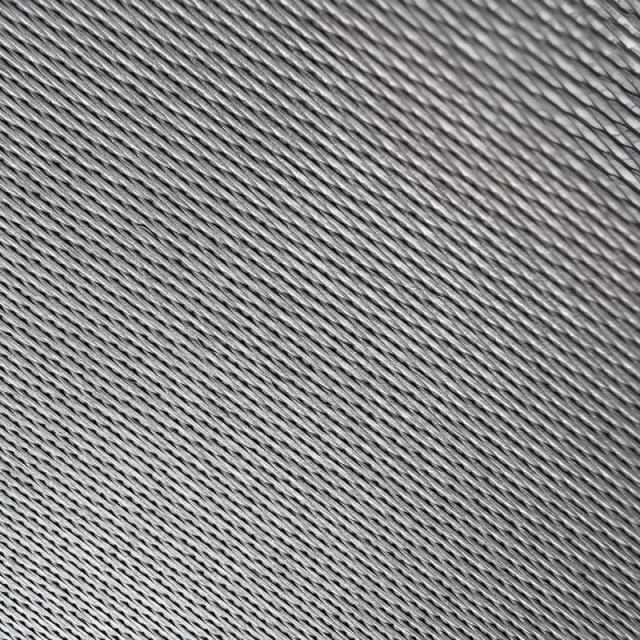

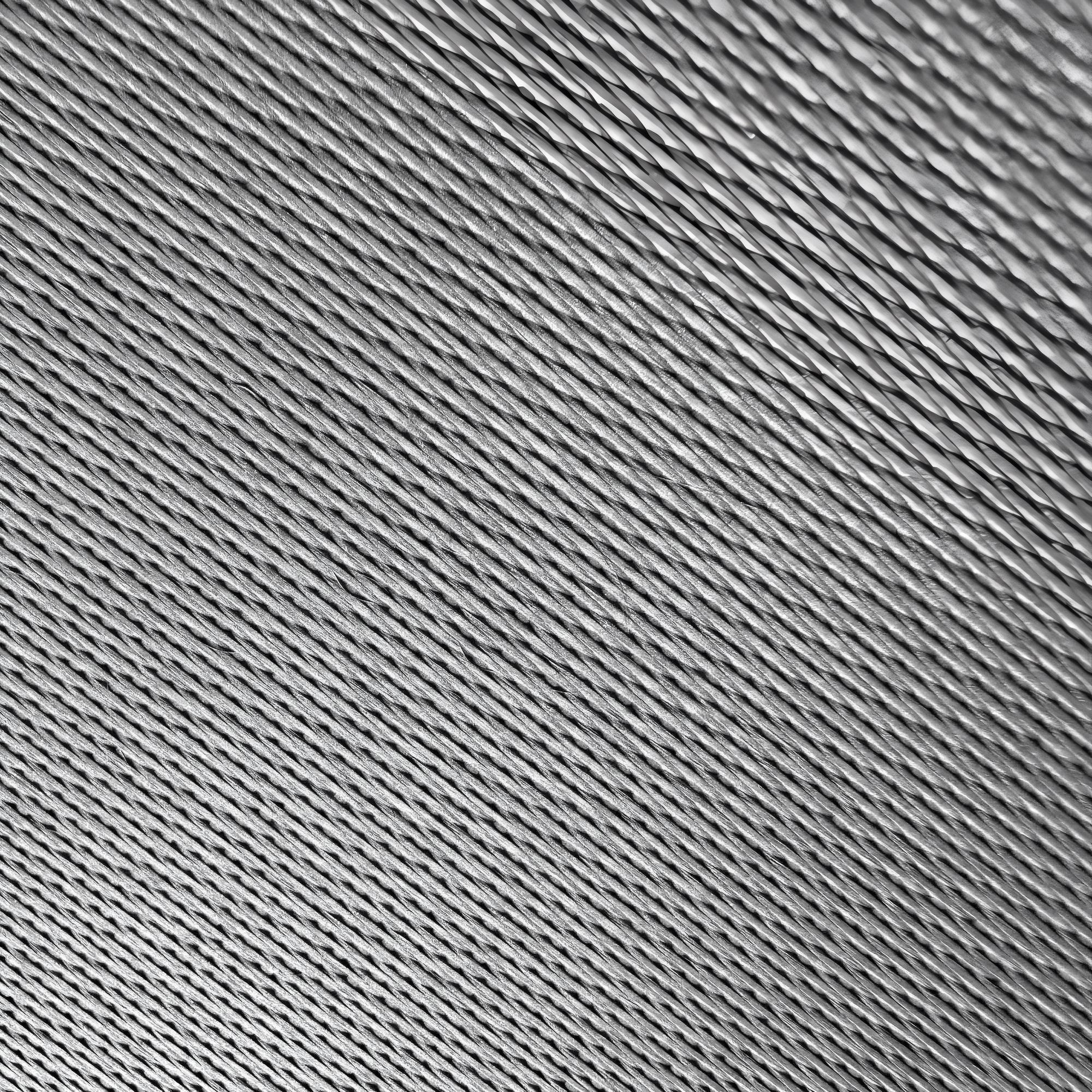

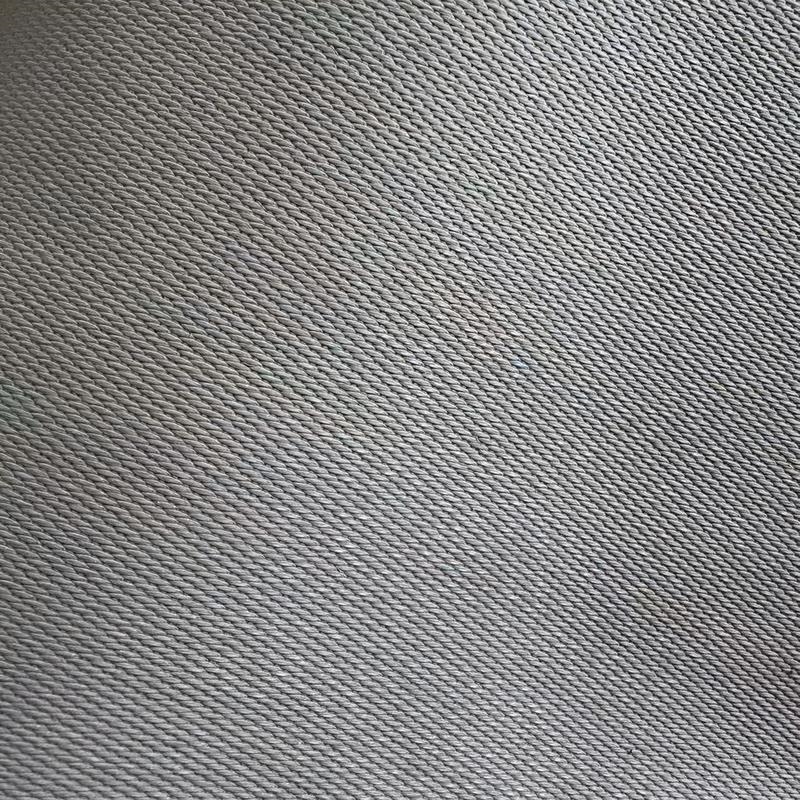

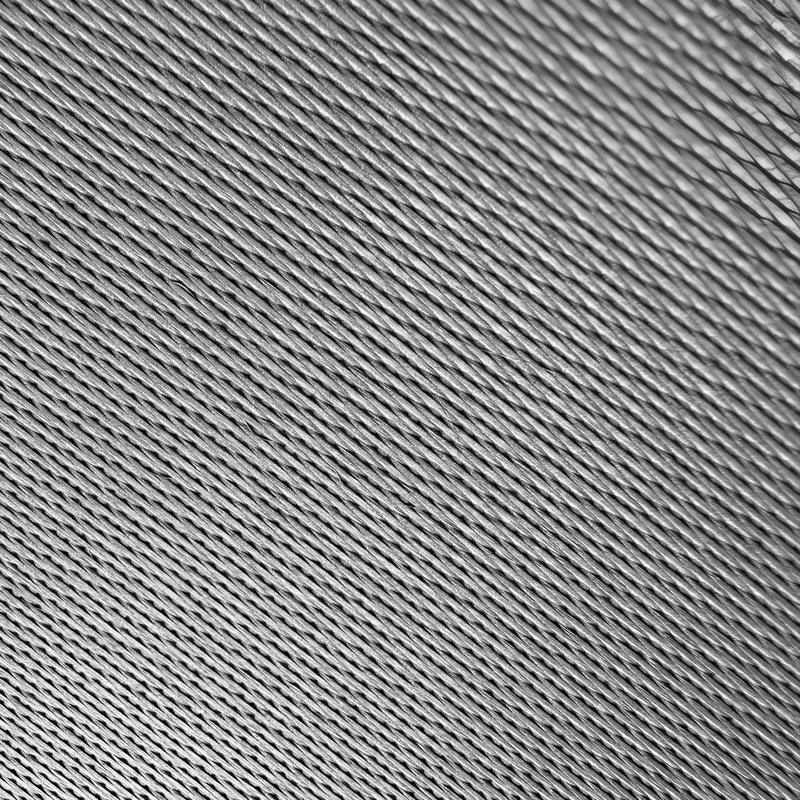

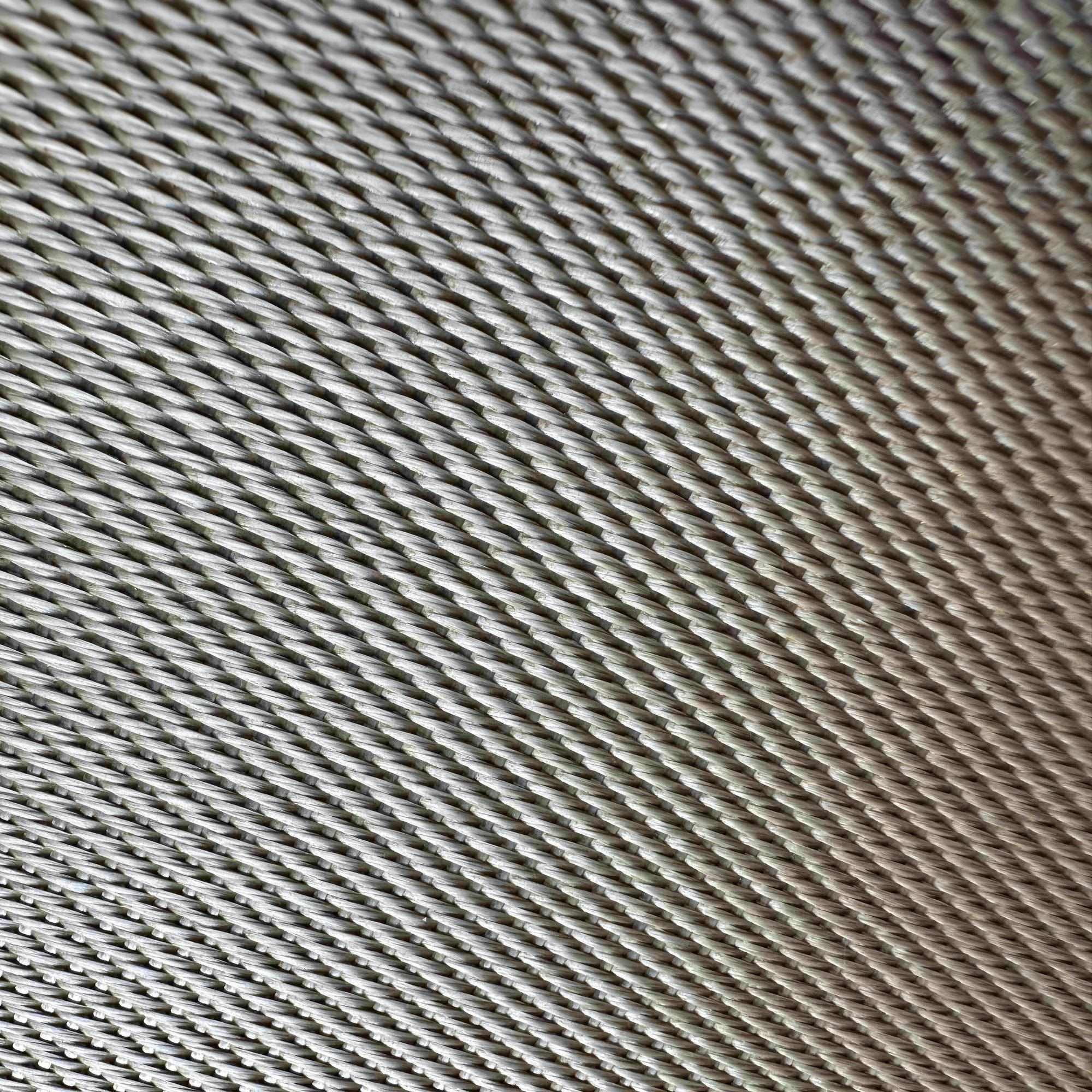

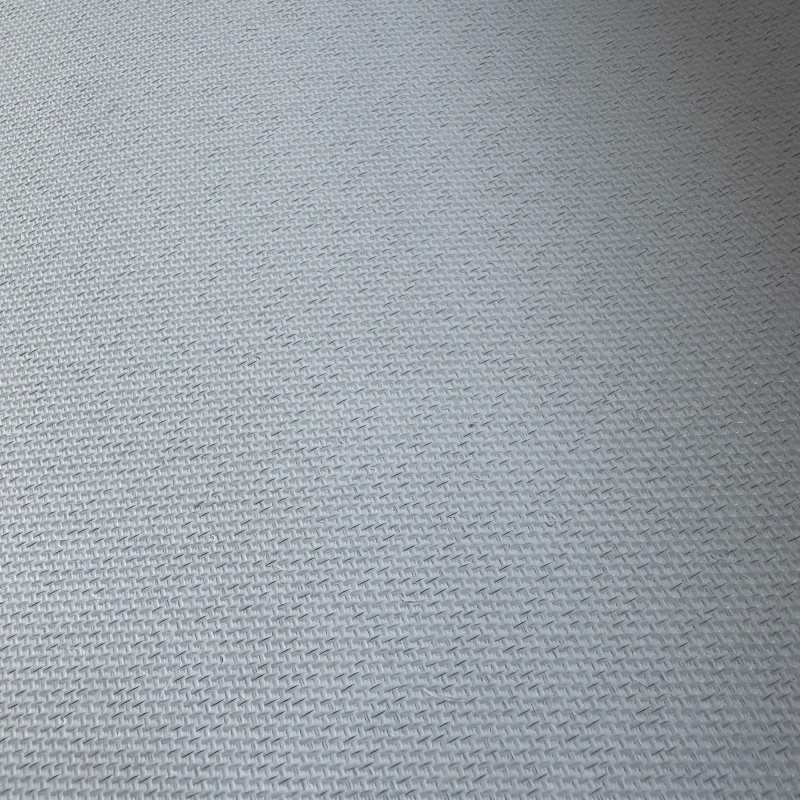

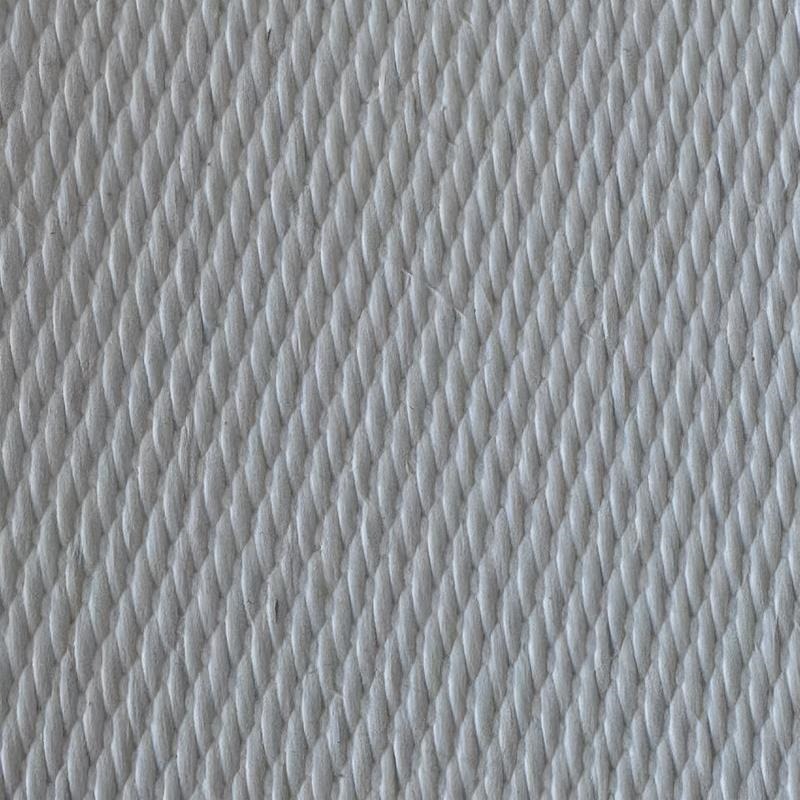

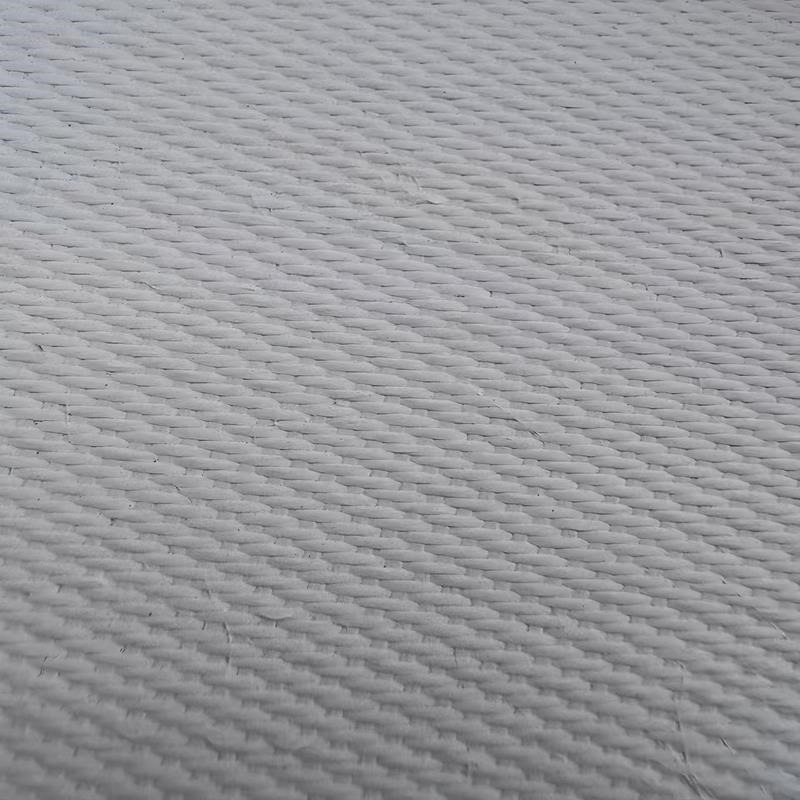

| Base Material | High Silica Fabric Glass Fiber Fabric Wired Glass Fiber Fabric |
| Coating Type | Polyurethane (PU) coating |
| Coating Side | single or double sided |
| Color | Grey, white, blue, red, black |

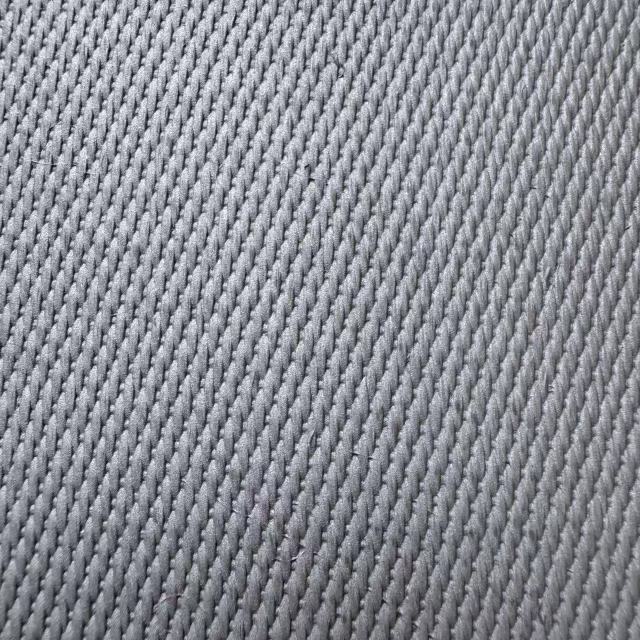

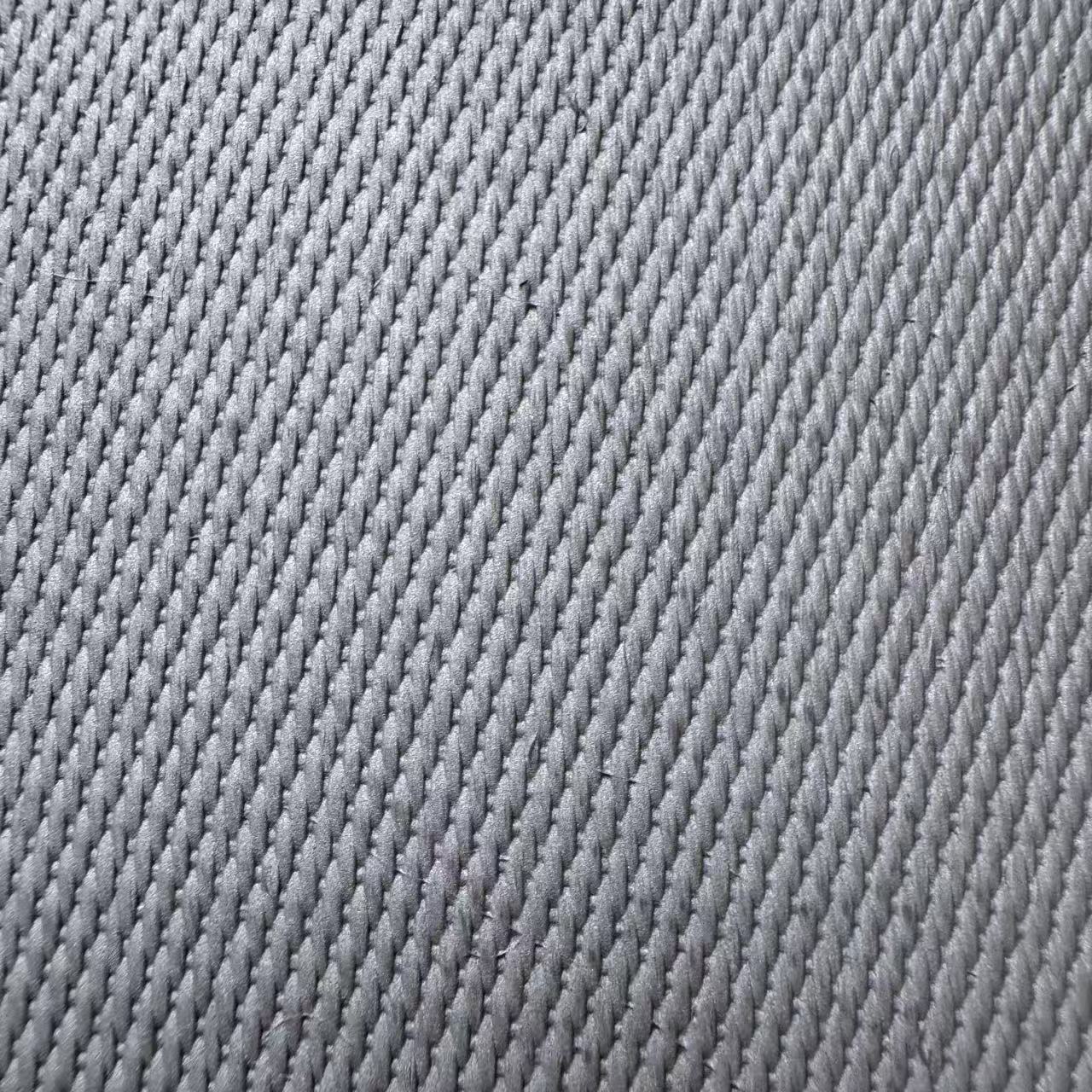

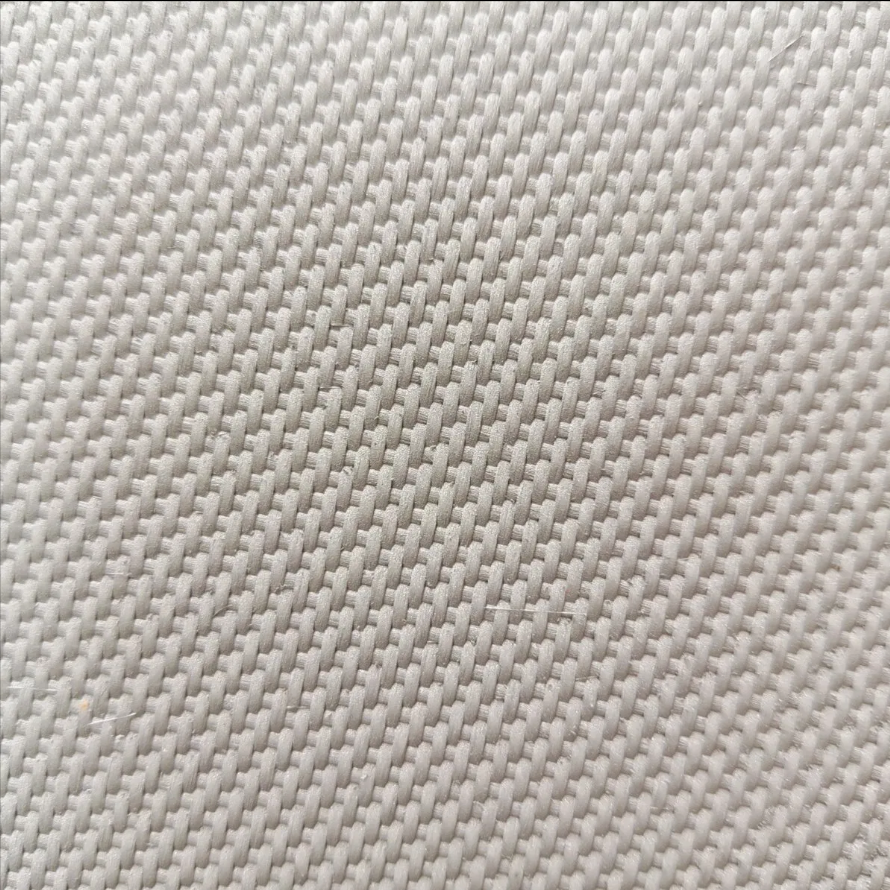

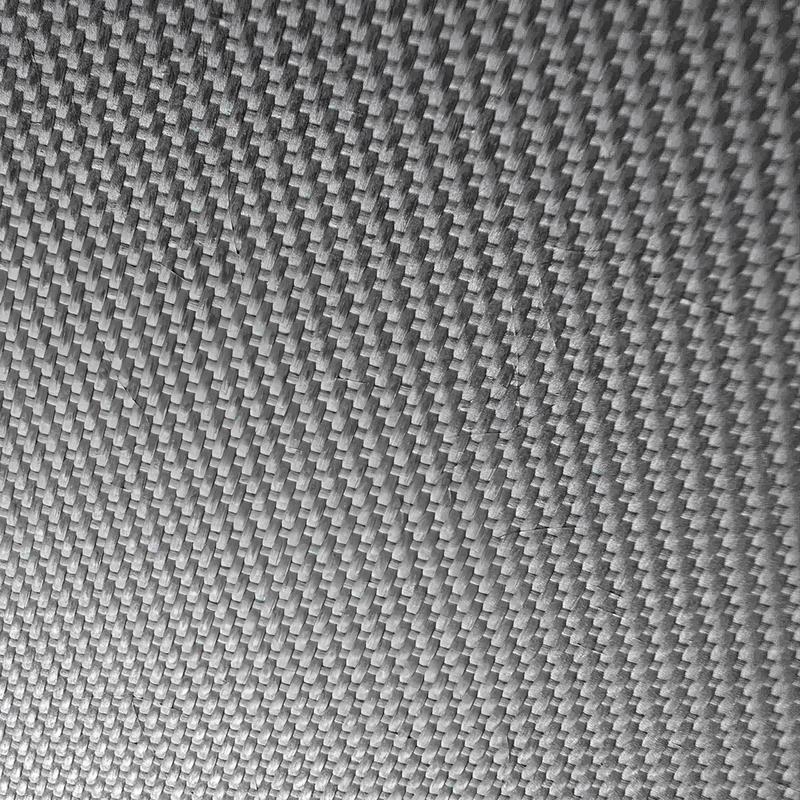

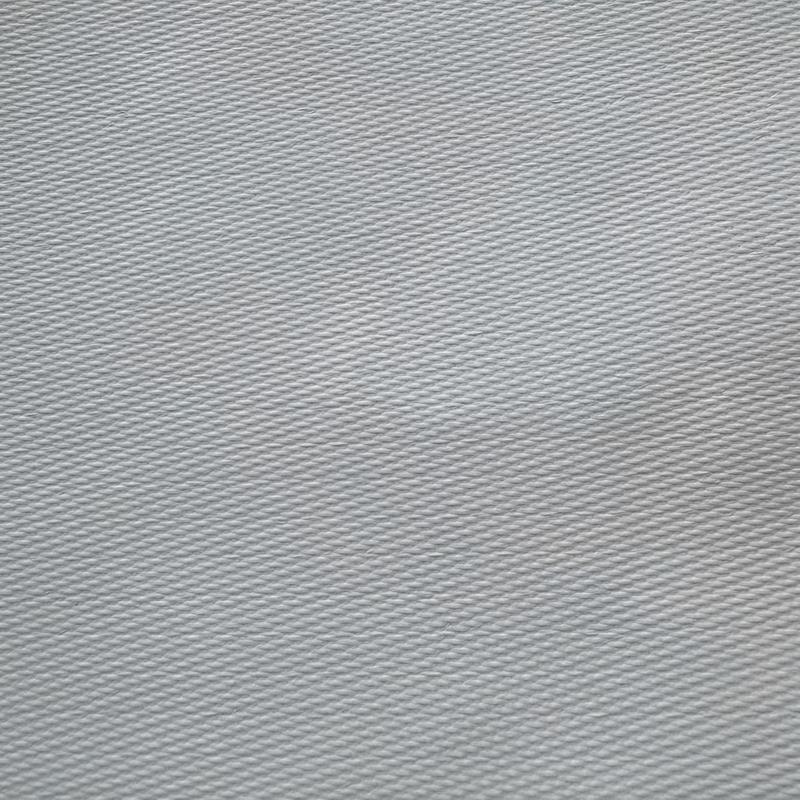

| Weaving Pattern | Plain, twill or satin weave. |
| Unit Area Weight | 220g/㎡-1000/㎡, including coating), customizable |
| Thickness | 0.2 mm (0.008 in) to 1.0 mm (0.04 in) |

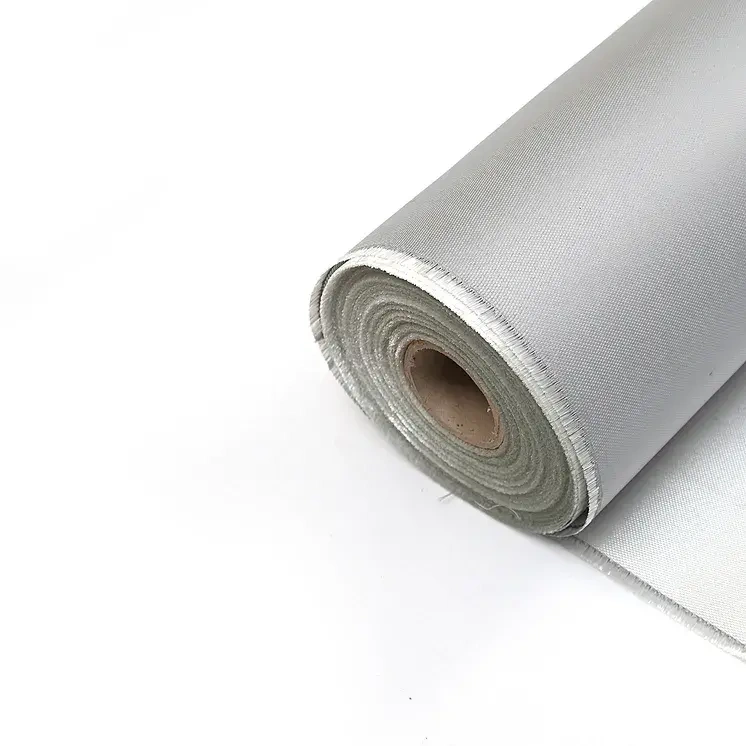

| Size | 50m/roll; customizable. |
| Temperature Resistance | – Coating: Standard: 180℃ (356°F) for continuous use. Premium: 1000℃+ (1832°F) for continuous use. – Base Fabric Silica: Continuous working temperature 1000°C (1832°F) Glass: Continuous working temperature 550°C (1022°F) |
| Fire & Smoke Properties | – Fire Rating: Meets A2 / B (EN 13501-1), no flame produced – Smoke Leakage: Gas-tight; low leakage rate – Smoke Toxicity: Safe Grade; non-toxic and low smoke emission. |
| Abrasion Resistance | Enhanced by PU coating, suitable for frequent mechanical movement. |
| Chemical Resistance | Excellent resistance to oils, fuels, and solvents. |
| Water Permeability | None (Waterproof and moisture-proof). |
| Physical Characteristics | – Flexibility: High; Excellent drape (hangs flat) without curling. – Non-stick Surface: Dry finish; No sticking/blocking when rolled for long periods. |
| Anti-Aging & Environmental | – Service Life: Excellent UV and oxidation resistance for long-term use. – Eco-friendly: Halogen-free, Asbestos-free, RoHS/REACH compliant. |
| Key Advantages | Space Saving: PU coated fabric is thinner and more flexible, allowing for a smaller roller diameter and compact installation. Zero Adhesion: Unlike silicone, PU coating will not stick to itself after being tightly rolled for years, ensuring instant deployment during a fire. Easy Fabrication: It is much easier to sew and cut without fraying, and it provides a cleaner, professional aesthetic for architectural use |
| Applications | 1. Fire Curtains: Fire-rated barriers for buildings and elevators. 2. Smoke Curtains: Draft curtains for malls, warehouses, and basements. 3. Expansion Joints: Flexible connectors for HVAC and power plants. 4. Industrial Covers: Removable insulation jackets and welding screens. |
