| Silicone Coated Fiberglass Fabrics (Regular) | ||||
| Code | Fabric Thickness (mm) |
Fabric Weight (g/m2) |
Coating Weight (g/m2) |
Coating side |
| FF02KR1 | 0.2 | 210 | 50 | 1 |
| FF02KR2 | 0.2 | 210 | 100/130/200 | 2 |
| FF04KR1 | 0.4 | 430 | 80/100 | 1 |
| FF04KR2 | 0.4 | 430 | 50/130/150/300 | 2 |
| FF06KR1 | 0.7 | 660 | 120/150/300 | 1 |
| FF06KR2 | 0.7 | 660 | 200/240/300 | 2 |
| FF08KR1 | 0.8 | 880 | 130/150/300 | 1 |
| FF08KR2 | 0.8 | 880 | 200/260/300/500 | 2 |
| FF13KR2 | 1.3 | 1300 | 300/500 | 2 |
| FF17KR2 | 1.7 | 1700 | 400/500/600 | 2 |
| FF04KSR1* | 0.4 | 480 | 100/130 | 1 |
| FF04KSR2* | 0.4 | 480 | 150/250 | 2 |
| FF06KSR1* | 0.6 | 640 | 150/200/250 | 1 |
| FF06KSR2* | 0.6 | 640 | 260/300/400 | 2 |
| SF06KR1** | 0.6 | 600 | 150/200 | 1 |
| SF06KR2** | 0.6 | 600 | 250/300 | 2 |
| Available width: 1000mm, 1200mm, 1520mm Typical color: grey, red, black, white, yellow, green, blue etc. Temperature: Fiberglass 550℃ Silicone 260℃ * Stainless steel wire reinforced fiberglass fabric with silicone coating ** high silica fabric with silicone coating |
||||
Description:

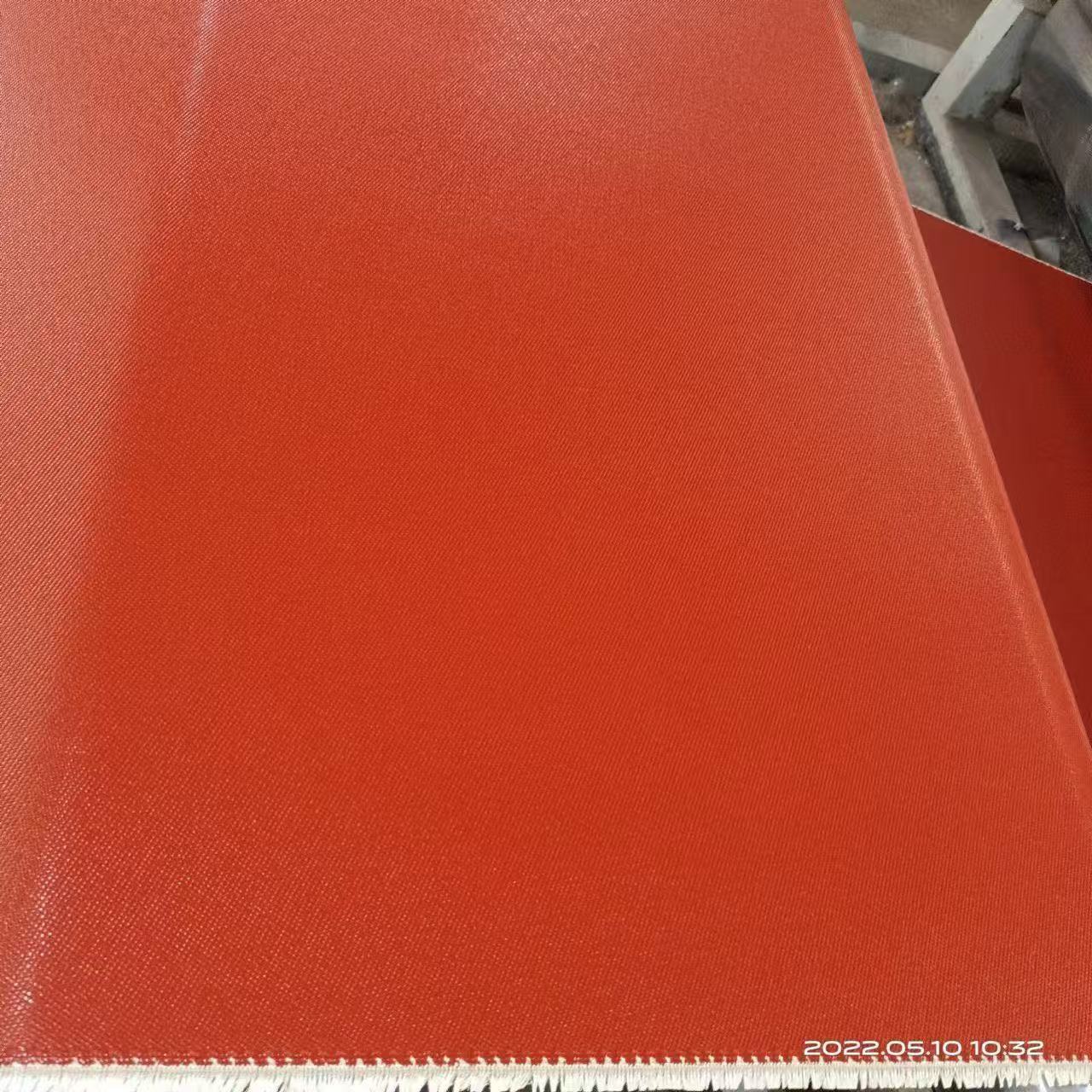

600g both sides silicone coated silica fabric is a 400g high silica fabric coated with 200g liquid silicone rubber on both sides. This fabric provides good properties of flexibility, water and oil proof, abrasion resistance, corrosion resistance, excellent resistance for general chemicals and heat up to 1000°C . It is heavily used for welding blankets, thermal insulation blankets, thermal expansion joints, equipment protective covers, fire curtains and barriers.
Applications and Advantages:
| Application Area | Specific Uses | Key Advantages |
|---|---|---|
| 🔥 High Temperature & Fire Protection | Welding blankets / welding curtains, industrial / new energy (EV) fire blankets, fire curtains, smoke baffles | Withstands instantaneous high temperature (up to 550℃+), blocks fire and oxygen, prevents molten splashes and sparks |
| 🔧 Thermal Insulation Systems | Outer layer material for removable insulation jackets/covers for pipes, valves, flanges and industrial equipment | Protects internal insulation, waterproof, oil-resistant and anti-aging, reduces heat loss and safety risks |
| 💨 Flexible Connections & Expansion Joints | Flexible duct connectors, base material for non-metallic expansion joints (compensators) | Absorbs thermal displacement and vibration of pipelines, excellent air tightness and fatigue resistance |
| ⚙️ Industrial Protection & Sealing | Engine heat shields, high-temperature gaskets, outdoor equipment waterproof covers, corrosion-resistant gaskets | Chemical resistant, weather resistant, tear resistant, suitable for harsh working conditions |
| ⚡ Electrical Insulation | High-temperature insulation cloth, sleeves, insulation materials for motors / electrical appliances | High insulation strength, stable electrical performance at high and low temperatures |
| 🌊 Corrosion Protection & Marine | Internal and external anti-corrosion layers for pipelines, marine engine insulation, marine equipment protective covers | Salt spray resistant, corrosion resistant, water resistant, extends service life of equipment |
| 🏗️ Construction & New Energy | Architectural membrane structures, photovoltaic backsheets, fire barriers for power batteries | UV resistant, flame retardant, suitable for new energy and green building applications |
