• 0.8mm 1000gsm pu coated fiberglass cloth for welding blankets and curtains
  • 0.8mm 1000gsm pu coated fiberglass cloth for welding blankets and curtains

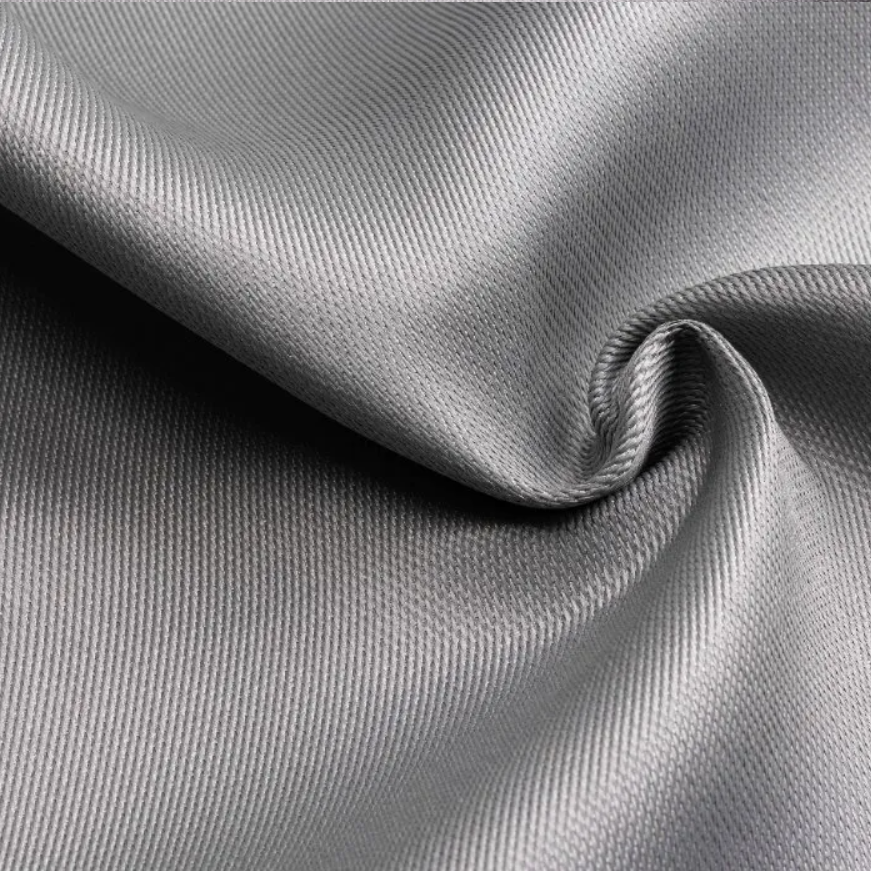

0.8mm PU coated fiberglass fabric for welding blankets and curtains

No.FF08U2
Fiberglass Type
E-Glass
Weave
8H Satin
Finish
polyurethane coated
Thickness
0.8mm(±10%)
Weight
1000g/m2
Color
Grey, red, white...
Width
100mm-2000mm
$3.00
  • 0.8mm 1000gsm pu coated fiberglass cloth for welding blankets and curtains
  • Description

  • Custom Options

Product Parameters:
PU Coated Fiberglass Fabrics (Regular)
Code Fabric Thickness
(mm)
Fabric Weight
(g/m2)
 Coating Weight
(g/m2)
Coating side
FF02U1 0.2 210 20 1
FF04U1 0.4 430 20 1
FF04U2 0.4 430 40 2
FF06U1 0.6 660 20 1
FF06U2 0.6 660 40 2
FF04SU1* 0.4 480 20 1
FF04SU1* 0.4 480 40 2
FF06SU1* 0.6 640 20 1
FF06SU2* 0.6 640 40 2
SF06U2** 0.6 600 40 2
Available width: 1000mm, 1200mm, 1520mm etc.
Available color: grey, red, blue, etc.
Temperature: Fiberglass 550℃ PU 150℃
* Stainless steel wire reinforced fiberglass fabric with PU coating
** High silica fabric with PU coating


Description:
PU coated fiberglass fabric is a high-performance composite material designed for diverse industrial and commercial applications, crafted by uniformly coating premium polyurethane (PU) resin onto a high-strength woven fiberglass base cloth. We offer a durable, versatile solution that combines the inherent strength, dimensional stability, and fire resistance of fiberglass with the excellent flexibility, waterproofing, and wear resistance of PU coating. Our PU coated fiberglass fabric is engineered to meet the strictest industry standards, making it the ideal choice for projects requiring reliability, longevity, and multi-functional performance.

Key Features
Our PU coated fiberglass fabric stands out for its exceptional properties, tailored to meet the demands of various sectors. Whether you need a lightweight, flexible material or a heavy-duty, wear-resistant solution, our PU coated fiberglass fabric delivers consistent performance:

  1. High Strength & Durability: Backed by a high-strength fiberglass base, our PU coated fiberglass fabric boasts excellent tensile strength, tear resistance, and dimensional stability. It resists stretching, shrinking, and deformation, even under heavy loads or prolonged use, ensuring a long service life.
  2. Flexibility & Easy Fabrication: Unlike rigid composite materials, PU coated fiberglass fabric is highly flexible, allowing for easy cutting, folding, sewing, and bonding. It can be fabricated into custom shapes, sizes, and finished products (such as covers, curtains, and membranes) to fit any application.
  3. Fire Retardant & Safe: Compliant with global fire safety standards, our PU coated fiberglass fabric is flame-retardant, low-smoke, and low-toxic. It inhibits flame spread and releases no harmful gases, ensuring safety in industrial, commercial, and public spaces.

Applications
1. Passive Fire Protection (PFP) Systems
Fire & Smoke Curtains: Specifically engineered for vertical or horizontal automatic fire barriers in commercial complexes, elevator shafts, and warehouses. These fabrics ensure compartmentalization to prevent the spread of flames and toxic gases, meeting EN 13501-1 and UL standards.

2. Industrial HVAC & Energy Sector
Smoke Extraction Ductwork: Used in the fabrication of flexible connectors for smoke spill fans and high-temperature ventilation systems.

3. Welding & Hot Work Safety
Welding Blankets: Serves as a high-performance shield for sparks and molten metal splash (slag) in shipbuilding, automotive repair, and oil & gas maintenance.

4. Thermal Insulation & Equipment Protection
Equipment Protection Covers: Protective shielding for sensitive robotic arms, cables, and hydraulic lines in high-heat industrial environments (e.g., foundries or glass manufacturing).

Coating Methods: Single or double-sided coating
Coating weight: Highly customizable.
Custom cutting: Minimum width around 10 cm.
Custom printing: Your logo, product codes and other markings can be printed on request.

Reinforcement:
Strength: Some stainless steel wire reinforced E-Glass fabrics available for improved strength.
Fire performance: High-temperature resistant fillers can be added to work synergistically with polyurethane and flame retardants, enabling the material to remain intact after 120 minutes of fire exposure.
