Name: 1.0mm double sided silicone calendering fiberglass cloth
Brand: ThermaxCo
SKU: FF10CR2
Price: 5.50 USD
Availability: InStock
Rating: 5 (1 reviews)

No.FF10CR2

Fiberglass Type

E-Glass

Weave

Satin

Finish

Silicone calendering

Thickness

1.0mm(±10%)

Weight

1700g/m2

Width

100mm-1200mm

Color

Grey, red, black, white, green, yellow

$5.50

REQUEST A QUOTE

Description
Custom Options

Product Parameters:

Silicone Coated Fiberglass Fabrics
Code	Fabric Thickness (mm)	Fabric Weight (g/m2)	Coating Weight (g/m2)	Coating side
FF02KR1	0.2	210	50	1
FF02KR2	0.2	210	100/130/200	2
FF04KR1	0.4	430	80/100	1
FF04KR2	0.4	430	50/130/150/300	2
FF06KR1	0.7	660	120/150/300	1
FF06KR2	0.7	660	200/240/300	2
FF08KR1	0.8	880	130/150/300	1
FF08KR2	0.8	880	200/260/300/500	2
FF13KR2	1.3	1300	300/500	2
FF17KR2	1.7	1700	400/500/600	2
FF04KSR1*	0.4	480	100/130	1
FF04KSR2*	0.4	480	150/250	2
FF06KSR1*	0.6	640	150/200/250	1
FF06KSR2*	0.6	640	260/300/400	2
SF06KR1**	0.6	600	150/200	1
SF06KR2**	0.6	600	250/300	2
Available width: 1000mm, 1200mm, 1520mm Typical color: grey, red, black, white, yellow, green, blue etc. Temperature: Fiberglass 550℃ Silicone 260℃ * Stainless steel wire reinforced fiberglass fabric with silicone coating ** high silica fabric with silicone coating

Description:

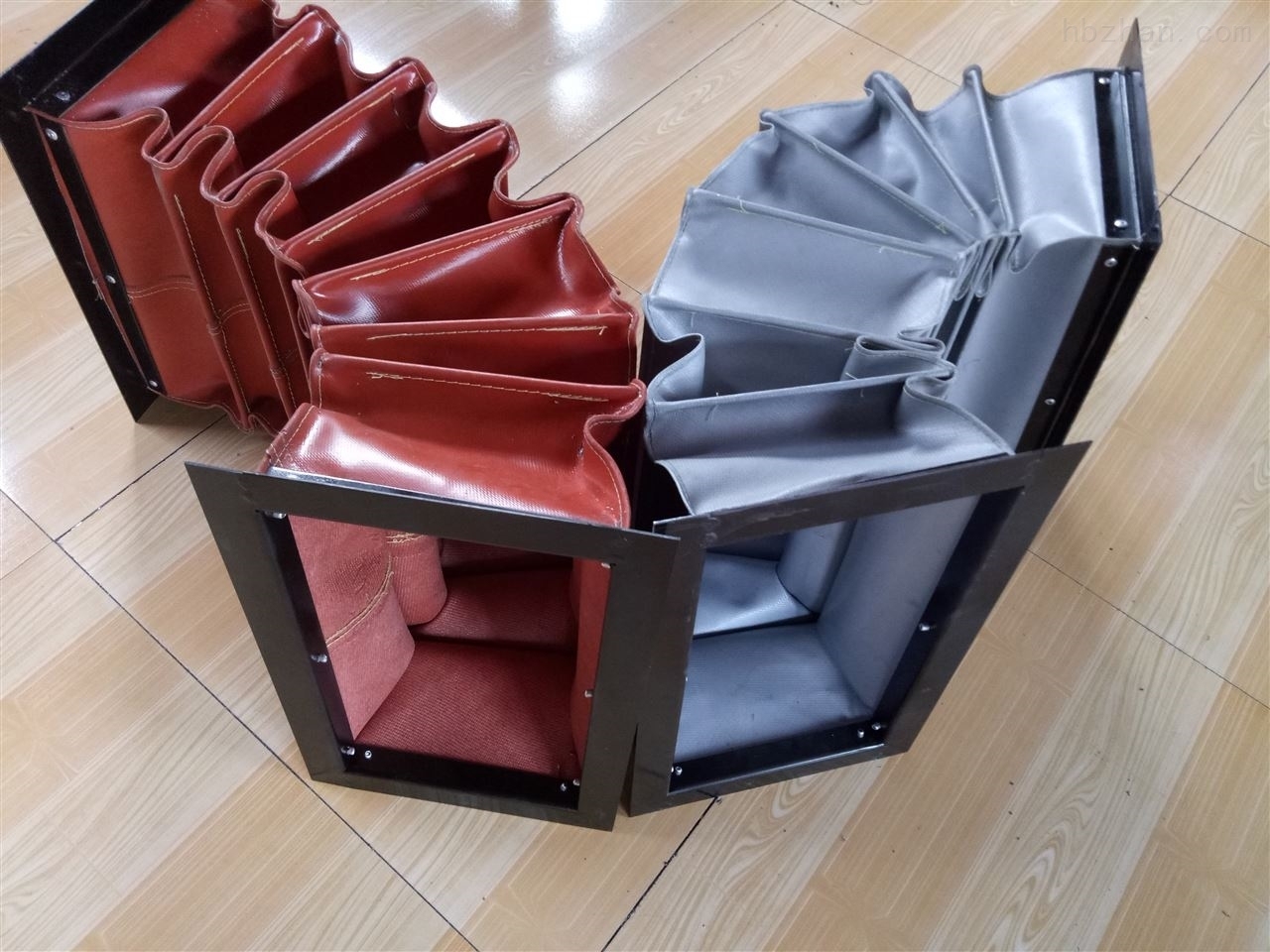

Crafted by calendering high-quality fiberglass fabric with high-purity silicone rubber on one or both sides, our calendered silicone fiberglass cloth features a dense, uniform coating that ensures strong adhesion between the silicone layer and the fiberglass base—eliminating peeling or shedding even under frequent expansion and contraction cycles of expansion joints. This unique manufacturing process endows the cloth with superior flexibility and dimensional stability, allowing it to perfectly adapt to the longitudinal and lateral displacements, angular deviations, and vibrations of expansion joints in pipelines, ducts, and industrial equipment, without cracking or losing sealing performance.

Key properties:

Exceptional Temperature Resistance: It maintains stable performance in a wide temperature range from -70℃ to 260℃ for long-term use, with short-term resistance to peak temperatures up to 550℃—effectively withstanding the extreme heat fluctuations that expansion joints in thermal power plants, cement plants, and chemical facilities often encounter. This ensures reliable operation even in high-temperature flue gas or steam pipeline expansion joints.
Superior Sealing, Acid Resistance, Chemical Resistance; : The heavy silicone rubber coating forms a tight, waterproof, and gas-tight barrier, preventing leakage of flue gas, steam, or corrosive media in expansion joints. It exhibits excellent acid resistance, capable of withstanding the erosion of acidic flue gas and chemical reagents commonly found in expansion joint working environments. Moreover, it has strong chemical resistance against various chemicals, oils, and ozone, as well as outstanding aging resistance that can resist long-term UV radiation, humidity, and temperature cycles—effectively avoiding brittleness, cracking, or performance degradation over time. These properties make it highly suitable for expansion joints in harsh extreme environments such as chemical plants, petroleum refineries, and waste incineration facilities.
High Flexibility & Durability: The combination of flexible silicone rubber and high-strength fiberglass base cloth ensures the cloth is soft yet tough, capable of withstanding repeated expansion and contraction of expansion joints without fatigue or damage. It has excellent tear and abrasion resistance, extending the service life of expansion joint systems to up to 10 years in outdoor or harsh industrial environments.
Easy Fabrication & Customization: It can be easily cut, sewn, and processed into various sizes and shapes to match different types of expansion joints, including fabric expansion joints, non-metallic compensators, and ductwork connectors. We offer customized solutions for thickness (0.6mm to 5mm), coating weight (500g/m² to 300g/m²), and single/double-sided calendering to meet the specific requirements of your expansion joint projects.

As the preferred material for expansion joint manufacturing, our calendered silicone fiberglass fabric is widely applied in key industries such as thermal power, petroleum, chemical, cement, steel, and metallurgy—effectively compensating for thermal expansion and contraction of pipelines, reducing vibration, and protecting equipment from damage. Compared with ordinary silicone-coated fiberglass cloth, our calendered version offers better coating uniformity, higher adhesion, and more stable performance, making it the ideal choice for high-demand expansion joint applications.

Coating Methods: Single or double-sided coating, liquid or calendered silicone.
Reinforcement: Some stainless steel wire reinforced fabrics available for improved strength.
Coating weight: Highly customizable.
Custom cutting: Minimum width around 10 cm.
Custom printing: Your logo, product codes and other markings can be printed on request.
Antistatic coating: Available in black and grey color, for now.
Ceramicized coating: Available as requested

BASE FABRICS FOR TREATMENT: High Silica Fabrics; Filament fiberglass fabrics; Texturized Fiberglass Fabrics; Steel Wire Reinforced Fiberglass Fabrics

RECOMMENDED: Coated Fiberglass fabrics; High Silica Fabrics; Aluminized Glass Fabrics; PTFE Coated Fabrics; Hi-temp Sewing Threads
