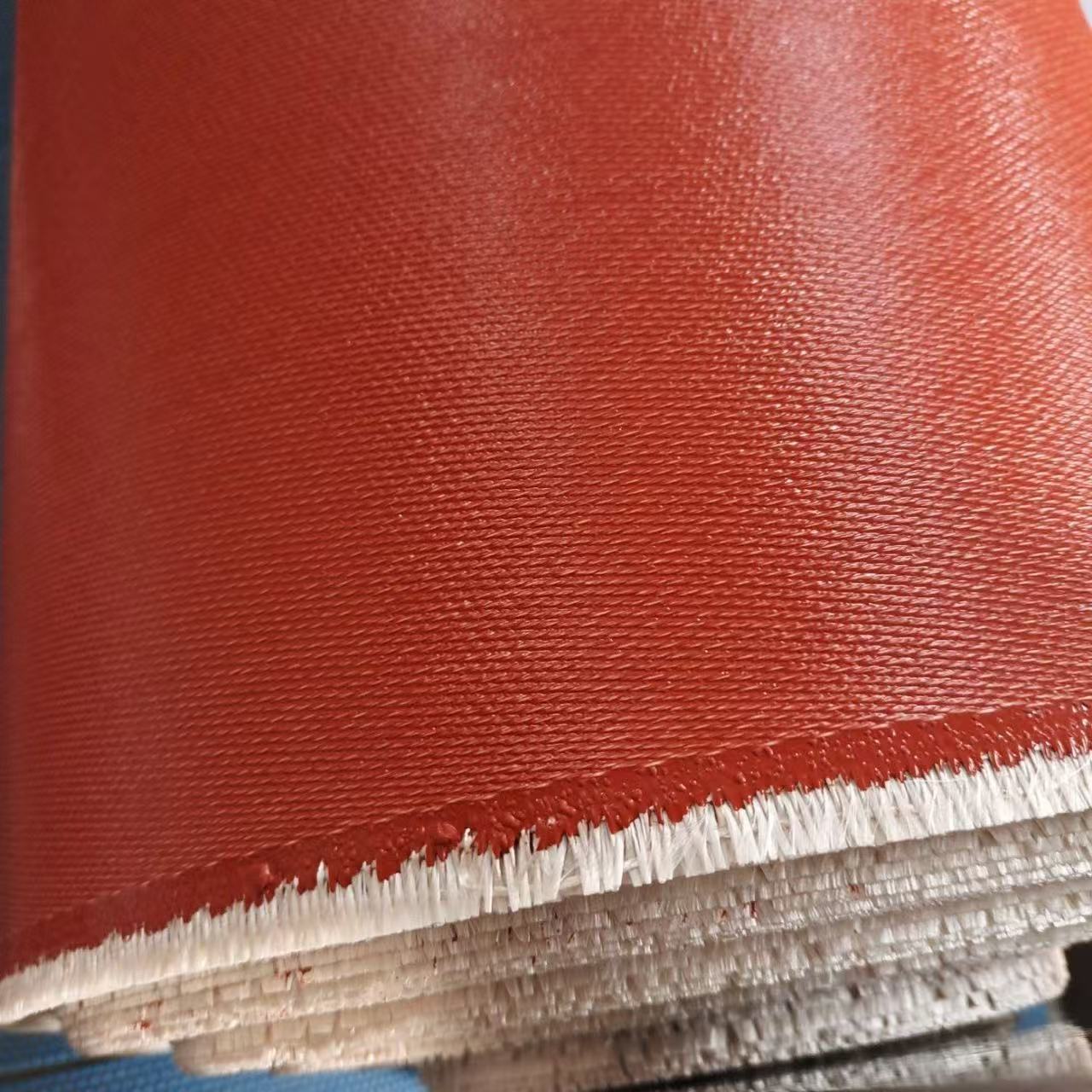

• 35oz silicone coated fiberglass fabric
  • 35oz silicone coated fiberglass fabric

1180gsm both sides silicone coated silica fabric



Fiberglass Type
96% silica
Weave
satin
Finish
Silicone coated
Thickness
1.1mm
Weight
1180g/m2
Color
Grey, red, black, white, green, yellow
Width
100mm-1500mm
$10.00
  • 35oz silicone coated fiberglass fabric
  • Description

  • Custom Options

Key Specifications

  • Weight:
1180 g/m² (approximately 35 oz/sq yd)
  • Base Material: 880gsm Silica cloth ( 12H satin weave)
  • Coating: High-temperature resistant silicone rubber (double-sided)
  • Color: Standard Red/grey
  • Standard Width: 920mm, 1000mm, 1300mm
  • Continuous Temp Rating: 260°C (500°F) (coating); 1000°C (1832°F) (base silica)
  • Short-term Flame Resistance: Up to 1093°C (2000°F)
  • Fire Rating: UL94 V-0, EN 13501-1 B

Applications and Advantages:

Application Area Specific Uses Key Advantages
🔥 High Temperature & Fire Protection Welding blankets / welding curtains, industrial / new energy (EV) fire blankets, fire curtains, smoke baffles Withstands instantaneous high temperature (up to 550℃+), blocks fire and oxygen, prevents molten splashes and sparks
🔧 Thermal Insulation Systems Outer layer material for removable insulation jackets/covers for pipes, valves, flanges and industrial equipment Protects internal insulation, waterproof, oil-resistant and anti-aging, reduces heat loss and safety risks
💨 Flexible Connections & Expansion Joints Flexible duct connectors, base material for non-metallic expansion joints (compensators) Absorbs thermal displacement and vibration of pipelines, excellent air tightness and fatigue resistance
⚙️ Industrial Protection & Sealing Engine heat shields, high-temperature gaskets, outdoor equipment waterproof covers, corrosion-resistant gaskets Chemical resistant, weather resistant, tear resistant, suitable for harsh working conditions
⚡ Electrical Insulation High-temperature insulation cloth, sleeves, insulation materials for motors / electrical appliances High insulation strength, stable electrical performance at high and low temperatures
🌊 Corrosion Protection & Marine Internal and external anti-corrosion layers for pipelines, marine engine insulation, marine equipment protective covers Salt spray resistant, corrosion resistant, water resistant, extends service life of equipment
🏗️ Construction & New Energy Architectural membrane structures, photovoltaic backsheets, fire barriers for power batteries UV resistant, flame retardant, suitable for new energy and green building applications
Coating Methods: Single or double-sided coating, liquid or calendered silicone.
Reinforcement: Some stainless steel wire reinforced fabrics available for improved strength.
Coating weight: Highly customizable.
Custom cutting: Minimum width around 10 cm.
Custom printing: Your logo, product codes and other markings can be printed on request.
Antistatic coating: Available in black and grey color, for now.
Ceramicized coating: Available as requested
