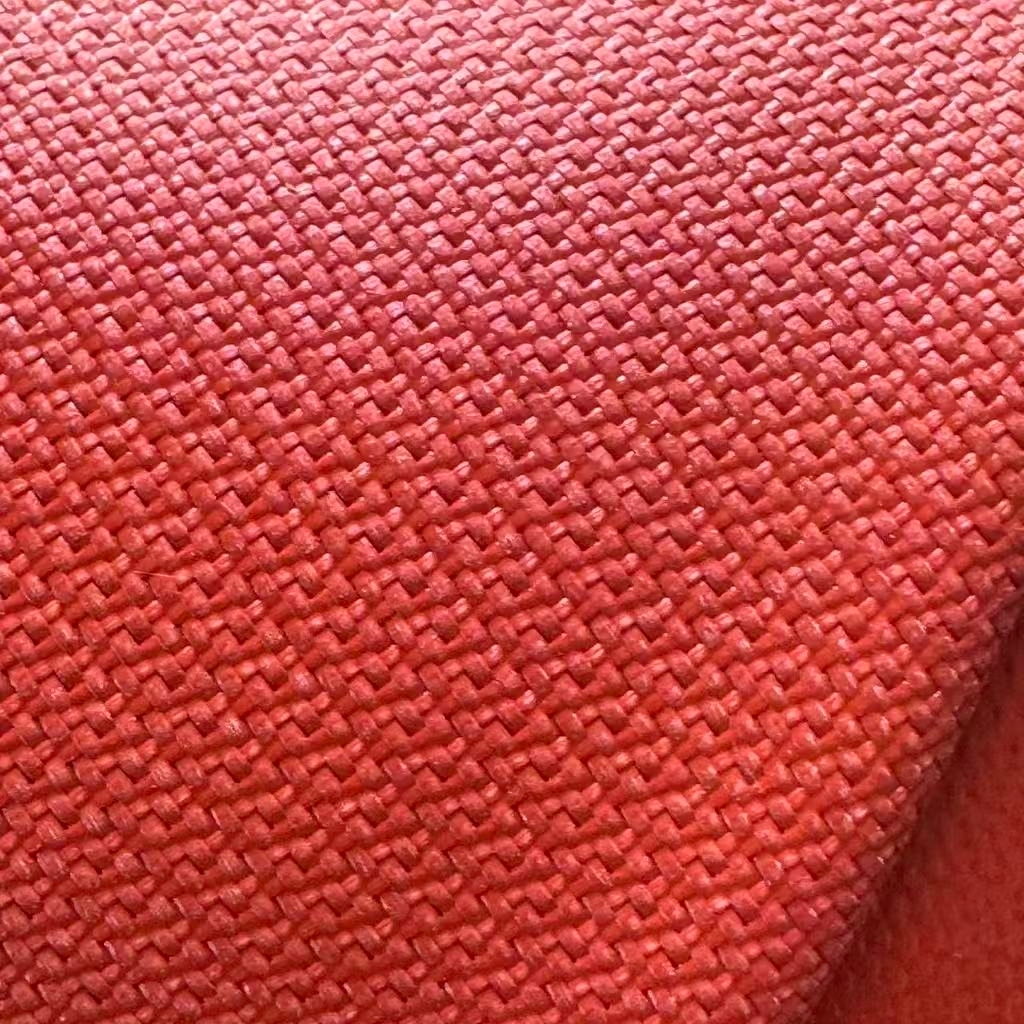

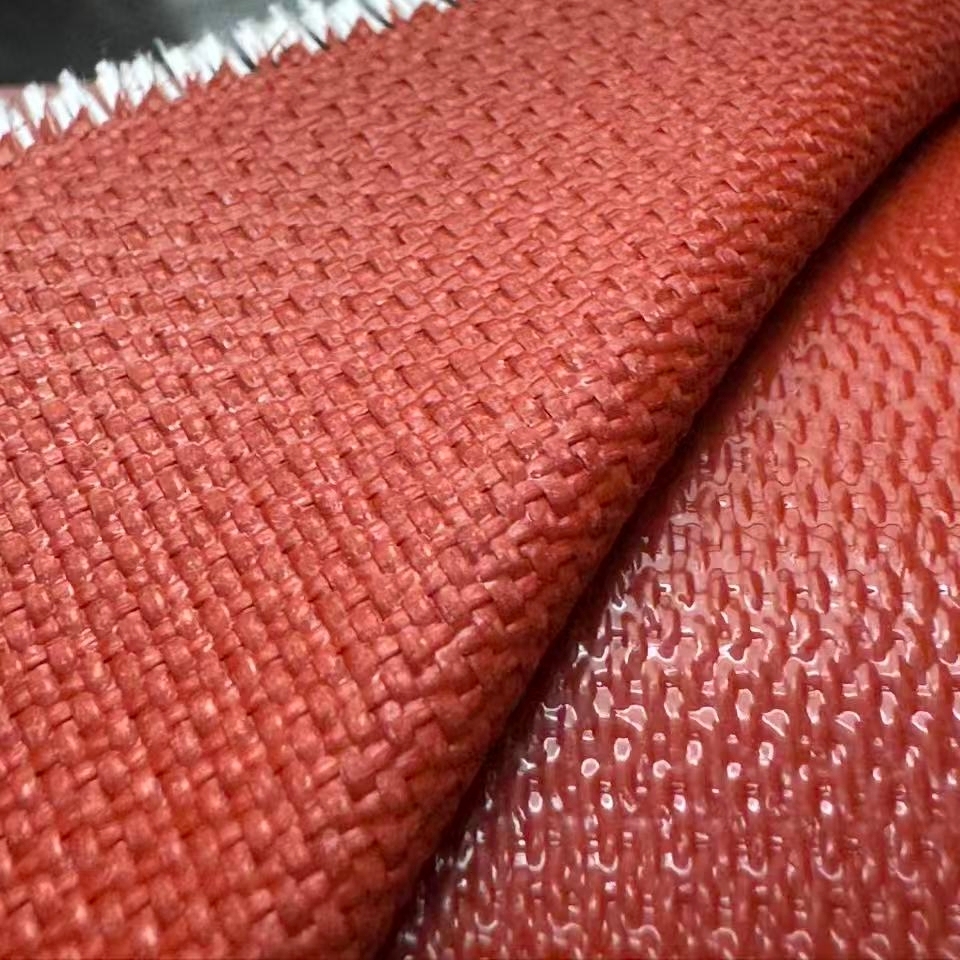

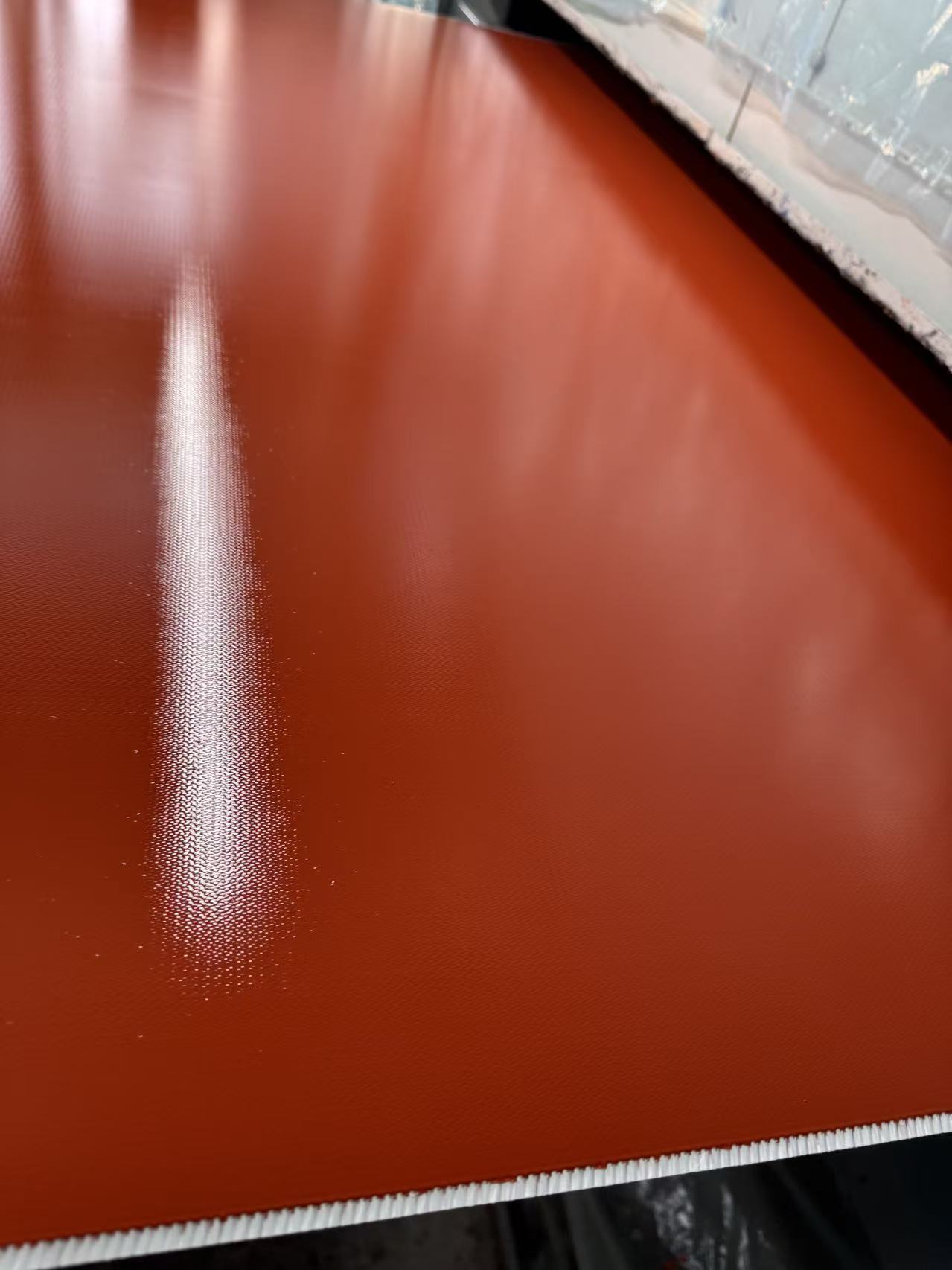

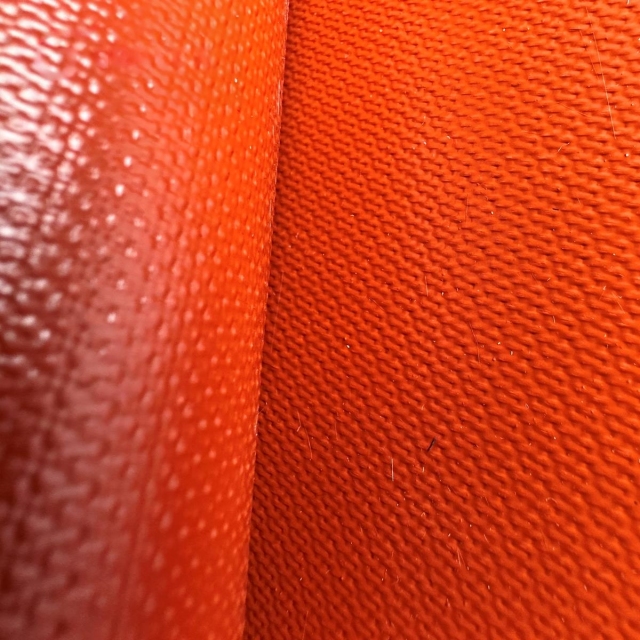

17oz silicone coated fiberglass fabric

Key Specifications

• Weight: 17 oz/sq yd (approximately 580 g/m²)
• Thickness: ~0.45 mm (0.018")
• Base Material: E-glass fiberglass ( 4H satin weave)
• Coating: High-temperature resistant silicone rubber (double-sided)
• Color: Standard Red/grey (custom colors available)
• Standard Roll Size: 60" (1.5m) width x 50 yards
• Continuous Temp Rating: 260°C (500°F) (coating); 540°C (1000°F) (base glass)
• Short-term Flame Resistance: Up to 1093°C (2000°F)
• Fire Rating: UL94 V-0, EN 13501-1 B

Core Properties & Advantages

1. Heat & Flame Resistance: Excels in high-temperature environments, preventing burn-through.
2. Superior Flexibility & Durability: Maintains softness for easy fabrication while offering excellent tear/puncture resistance.
3. Weather & Chemical Proof: Waterproof, UV-resistant, and protects against oils, acids, and alkalis.
4. Non-Hazardous: Asbestos-free, low smoke, and non-toxic when burned.
5. Easy to Fabricate: Can be cut, sewn, and taped into custom shapes.

Common Applications

• Removable Insulation Covers (for pipes, valves, engines, turbines)
• Expansion Joints & Flexible Connectors in ducts and exhaust systems
• Welding Blankets & Curtains for spark/flame protection
• Fire & Smoke Compartmentation in industrial and commercial buildings
• Heat Shields & Thermal Barriers
