| Woven Silica Fabrics (96% Sio2) Thermax woven silica fabrics range from 240g/m2 to 1800g/m2 and can be coated with silicone rubber, PU or vermiculite. We also offer aluminized silica fabrics for applications requiring radiant heat protection. |
|||||||||
| Code | Thickness | Weight | Density (ends/25mm) | Tensile Strength (N/25mm) | SiO₂ | Heat Loss | Weave | ||
| (mm) | (g/m²) | Warp | Weft | Warp | Weft | (%) | (%) | ||
| WSF03 | 0.3 | 300 | 37 | 30 | ≥1000 | ≥800 | ≥96 | ≤10 | Satin |
| WSF04 | 0.4 | 420 | 32 | 28 | ≥800 | ≥700 | ≥96 | ≤10 | Satin |
| WSF06 | 0.6 | 600 | 50 | 36 | ≥1400 | ≥1000 | ≥96 | ≤10 | Satin |
| WSF08 | 0.8 | 900 | 37.5 | 30 | ≥2200 | ≥1800 | ≥96 | ≤10 | Satin |
| WSF09 | 0.95 | 1000 | 40 | 33.75 | ≥2500 | ≥2000 | ≥96 | ≤10 | Satin |
| WSF10 | 1.0 | 1100 | 48 | 32 | ≥2800 | ≥2500 | ≥96 | ≤10 | Satin |
| WSF12 | 1.2 | 1350 | 40 | 32.5 | ≥3000 | ≥2500 | ≥96 | ≤10 | Satin |

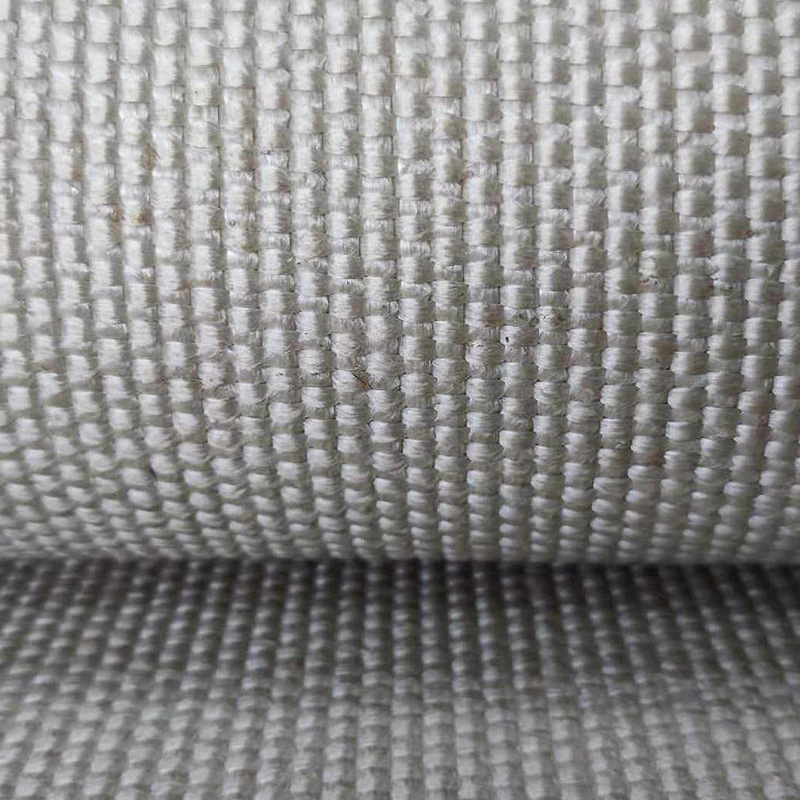

| TSF20 | 2.0 | 1300 | 14 | 7 | / | / | ≥96 | ≤10 | Plain |
| TSF30 | 3.0 | 1800 | 11 | 5 | / | / | ≥96 | ≤10 | Plain |
| Sintered Silica Fabrics (96% Sio2) Sintered (pre-shrunk) siilica fabircs are are used in industrial and aerospace applications that require minimum shrinkage at high temperatures. The areal shrinkage can be as low as 2% at 1000°C. Potential applications include: backing for quartz heaters, tray liners for thermal processing of parts, manufacturing of aerospace insulation parts, and mold release in metal forging. |
|||||||||
| Code | Thickness | Weight | Density (ends/25mm) | Tensile Strength (N/25mm) | SiO₂ | Heat Loss | Weave | ||
| (mm) | (g/m²) | Warp | Weft | Warp | Weft | (%) | (%) | ||
| WSF026-PR | 0.26 | 240 | 35 | 35 | ≥290 | ≥190 | ≥96 | ≤2 | Plain |
| WSF045-PR | 0.45 | 420 | 33 | 29 | ≥350 | ≥300 | ≥96 | ≤2 | Satin |
| WSF065-PR | 0.65 | 600 | 52 | 36 | ≥400 | ≥300 | ≥96 | ≤2 | Satin |
| WSF105-PR | 1.05 | 1100 | 50 | 32 | ≥700 | ≥400 | ≥96 | ≤2 | Satin |
| WSF120-PR | 1.2 | 1350 | 52 | 28 | ≥750 | ≥400 | ≥96 | ≤2 | Satin |
Typical Industrial Applications
Welding Protection
Welding blankets, welding curtains, welding pads (spark and molten slag resistance, cut resistant).
Flexible Thermal Insulation
Removable insulation covers for equipment, engine heat shields, exhaust pipe wrapping.
Fire Protection & Flame Retardancy
Fire curtains, smoke baffles, emergency fire blankets.
Sealing & Flexible Connections
Non-metallic expansion joints, flexible connections for high-temperature air ducts.
