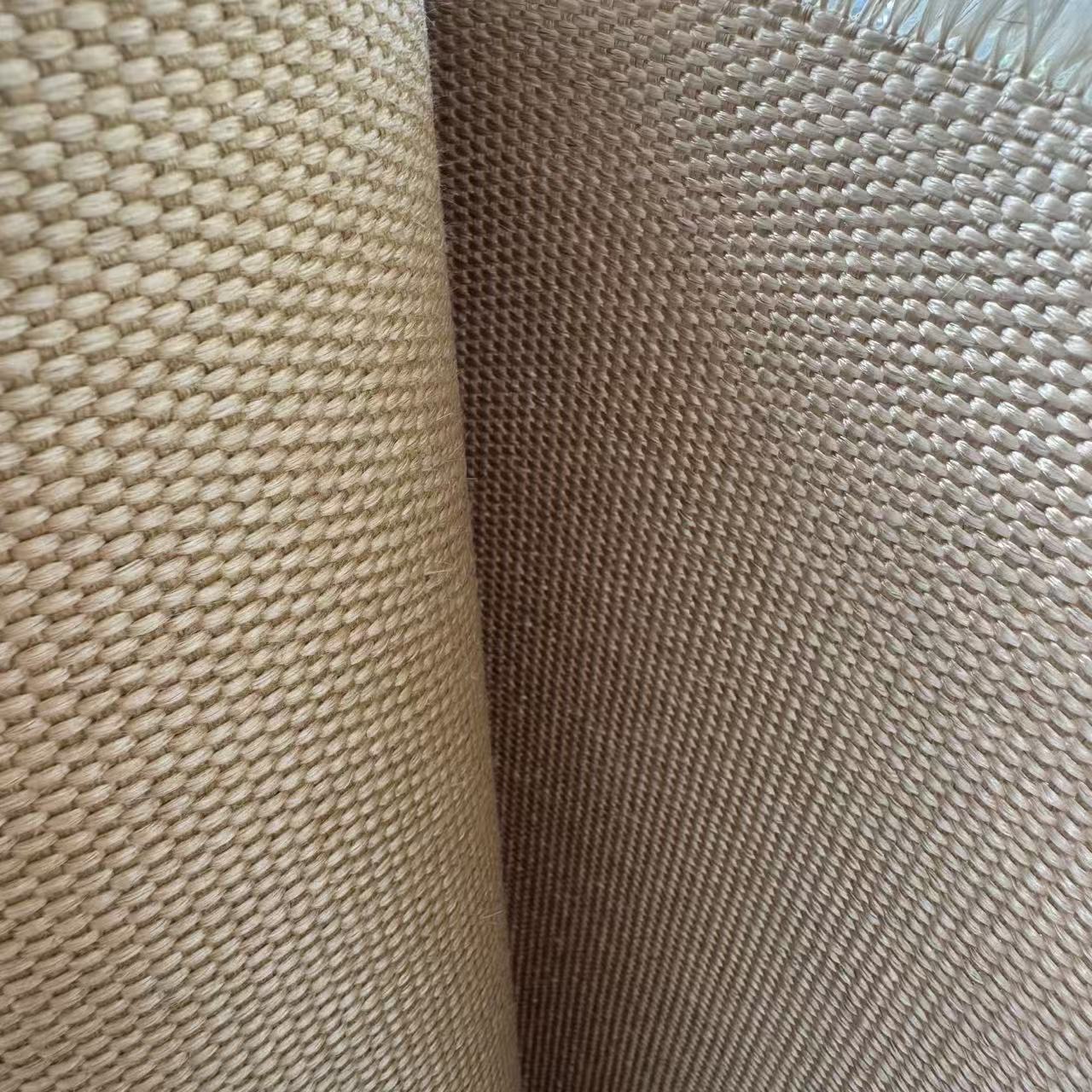

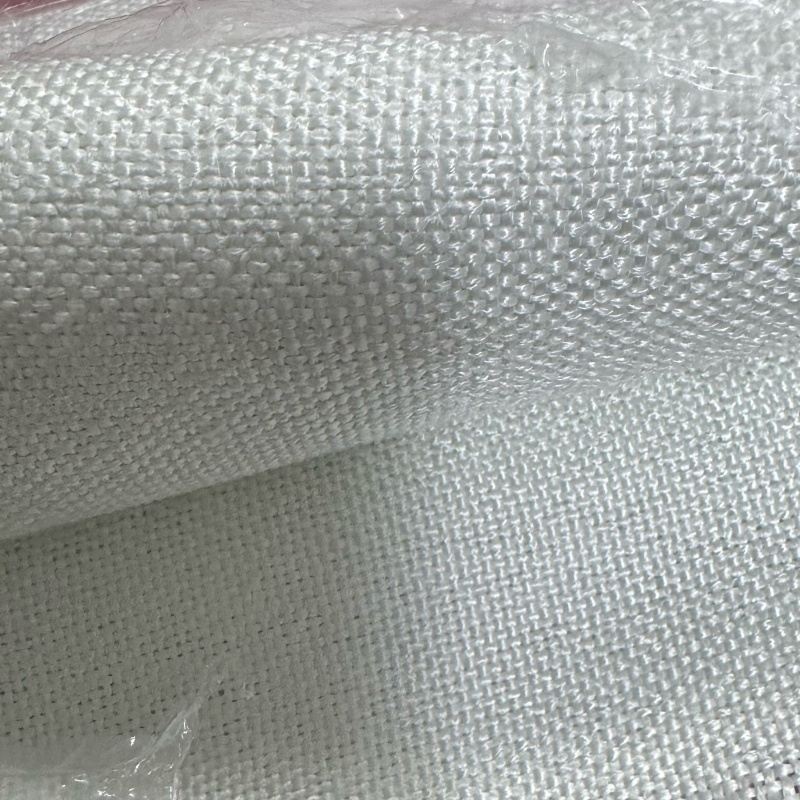

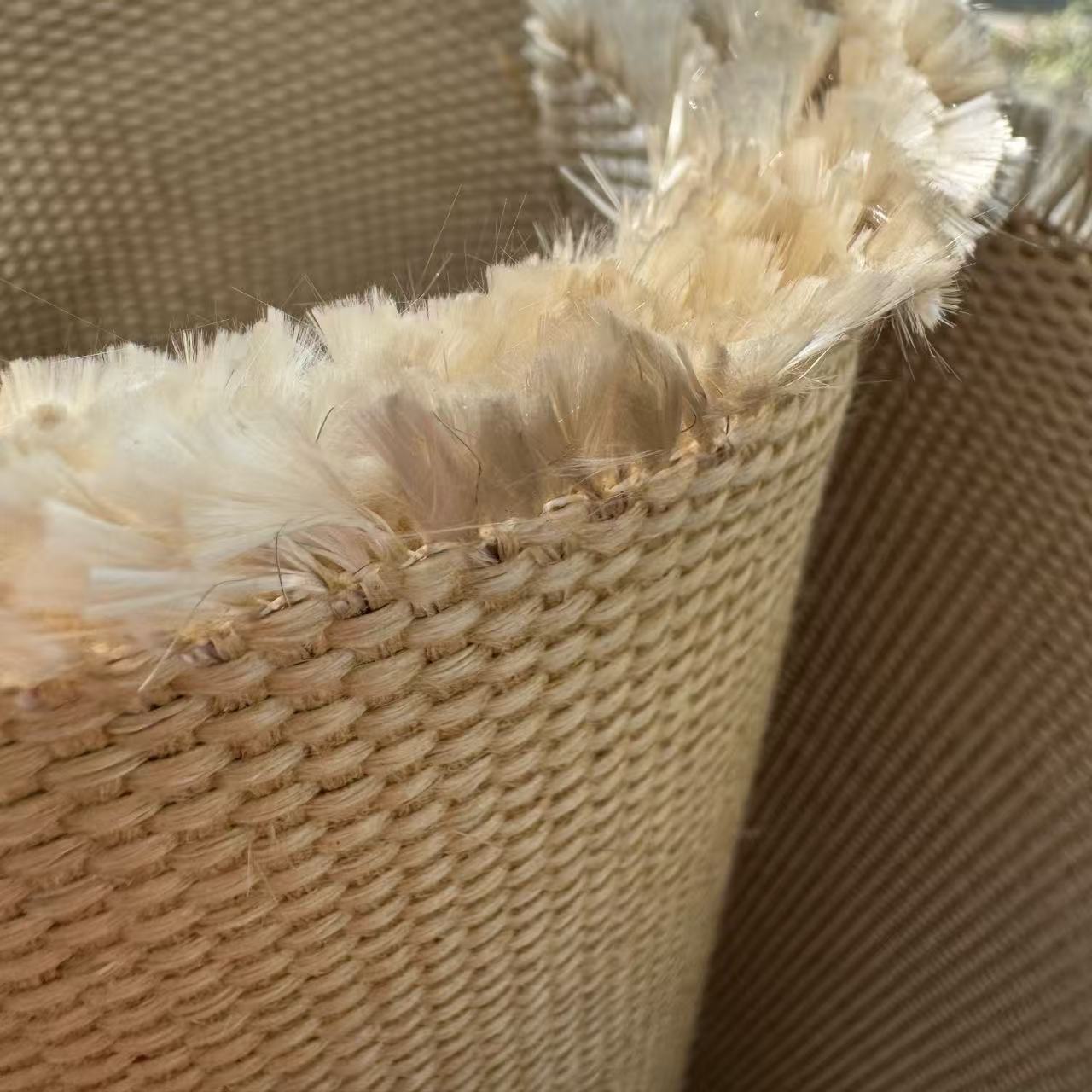

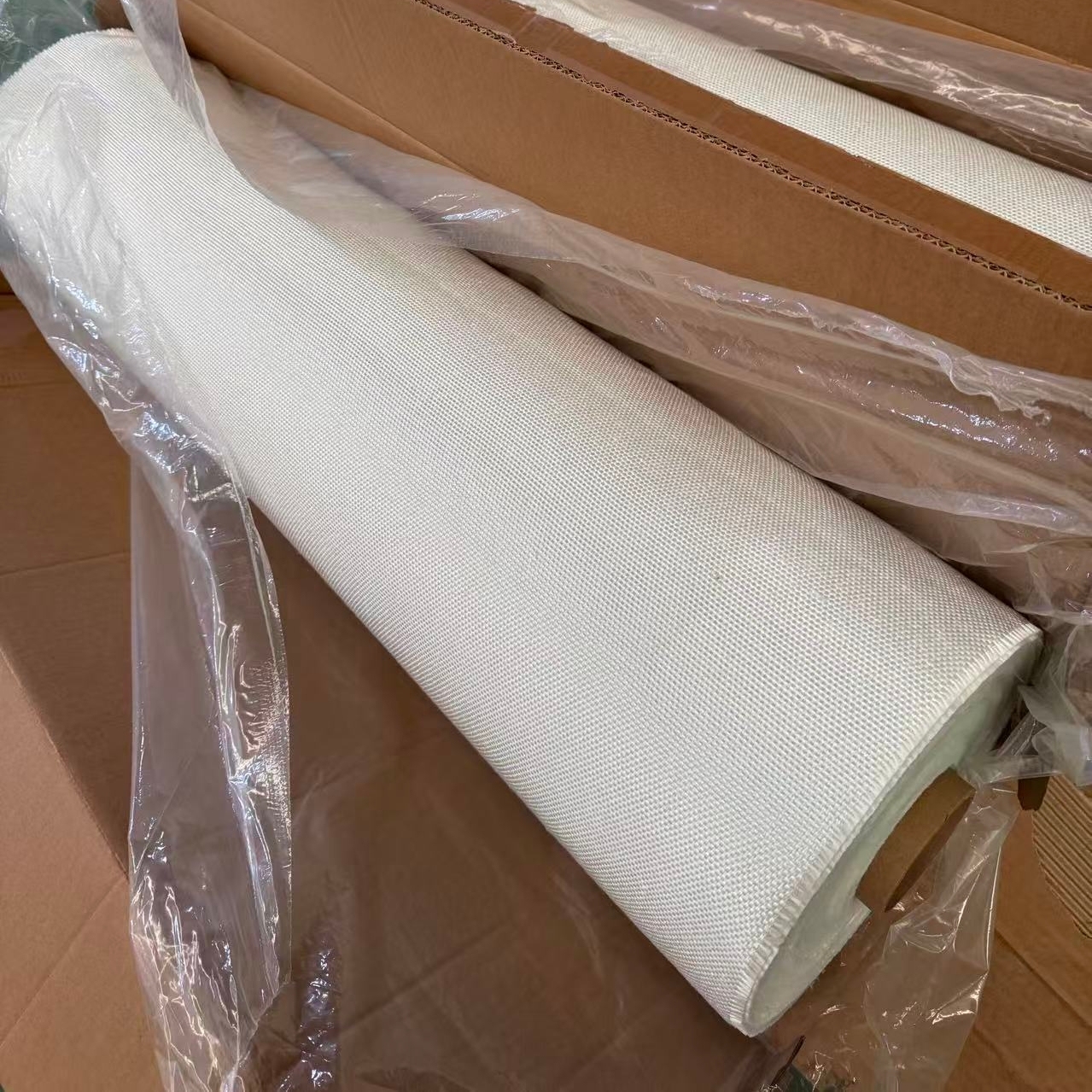

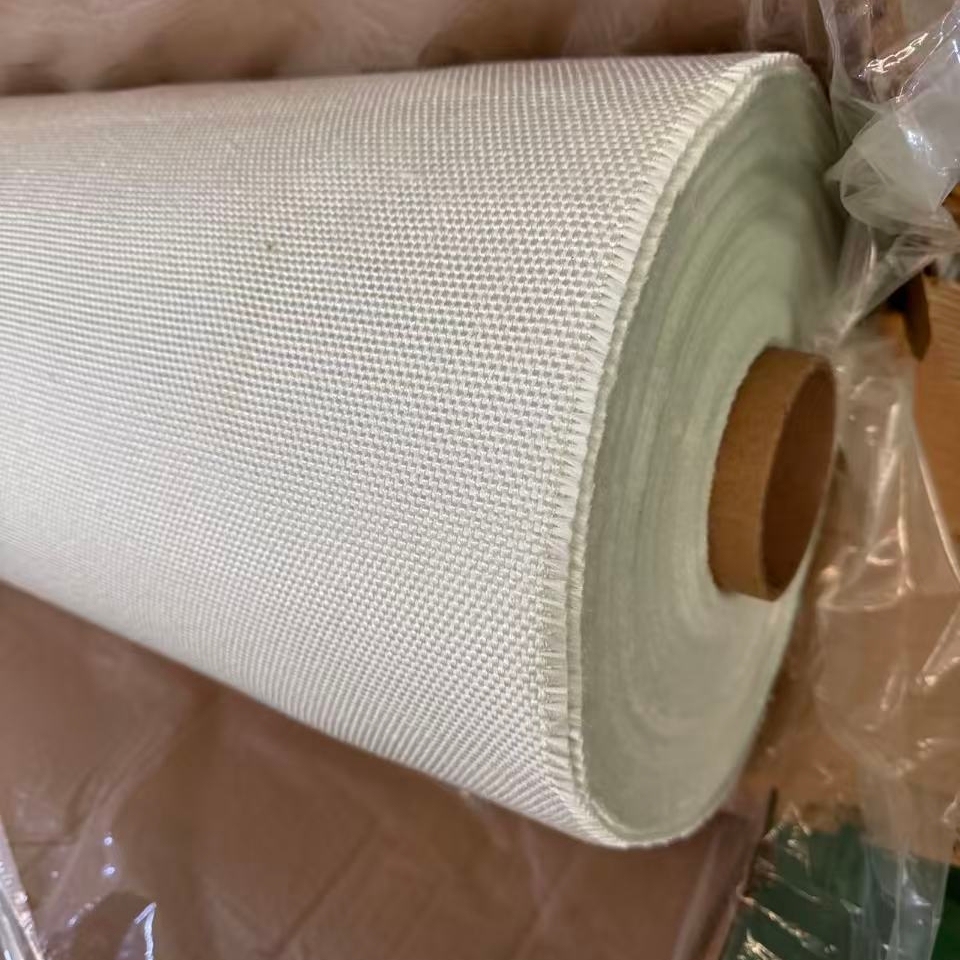

24oz 820gsm plain texturized fiberglass fabric 1mm fiberglass welding blanket cloth in rolls

Texturized fiberglass cloth is a high-performance industrial fabric woven from air-texturized fiberglass yarns, specifically designed for high-temperature, thermal insulation and fire protection scenarios. It is a non-asbestos, environmentally friendly material with excellent comprehensive properties, widely used in various industrial fields requiring heat resistance and flame retardancy.
Its core characteristics include outstanding high-temperature resistance, capable of withstanding continuous high temperatures of 500-1000℃ without deformation or damage; superior thermal insulation performance, with low thermal conductivity to effectively block heat transmission and reduce energy loss; excellent fireproof and flame-retardant effects, not burning, not melting, and effectively preventing the spread of fire. Additionally, it has good flexibility, tensile strength and wear resistance, easy to cut and install, and durable in harsh industrial environments.
In industrial applications, it is mainly used for high-temperature equipment insulation (such as boilers, furnaces, pipelines), thermal insulation of industrial kilns, fireproof wrapping of electrical components, fireproof separation in factories, thermal barrier layers of high-temperature pipelines, and auxiliary insulation in metallurgy, petrochemical, power, aerospace and other industries, providing reliable thermal protection and fire safety guarantees.

Fiberglass Type
E-Glass
Yarn
Texturized
Weave
Plain
Thickness
1.0mm
Weight
820g/m2
Color
White/Tan
Finish available
Heat treated, dyed, aluminum foil laminated, acrylic coated, vermiculite coated
  • 24oz 820gsm plain texturized fiberglass fabric 1mm fiberglass welding blanket cloth in rolls,ThermaxCo
  • 24oz 820gsm plain texturized fiberglass fabric 1mm fiberglass welding blanket cloth in rolls,ThermaxCo
  • 24oz 820gsm plain texturized fiberglass fabric 1mm fiberglass welding blanket cloth in rolls,ThermaxCo
  • 24oz 820gsm plain texturized fiberglass fabric 1mm fiberglass welding blanket cloth in rolls,ThermaxCo
  • 24oz 820gsm plain texturized fiberglass fabric 1mm fiberglass welding blanket cloth in rolls,ThermaxCo
  • 24oz 820gsm plain texturized fiberglass fabric 1mm fiberglass welding blanket cloth in rolls,ThermaxCo

Description

Product Parameter:

Style

Weave

 weight
(g/m2)

Thickness
(mm)

Warp Yarn
(Tex)

Weft Yarn
(Tex)

Width
(mm)

Density
(/cm)

Post-processing

84215

Plain

280

0.38

ET6-215

ET6-215

1000-2100

8×6

*Dyeing and weave lock,
Vermiculite coating,
Silicone coating,
PU coating,
Acrylic coating

2025

Plain

610

0.75

ET6-430

ET6-430

1000-2100

8×6

2125

Plain

650

0.6

ET6-580

ET6-580

1000-2100

6×5

2626

Twill

950

1

ET9-430

ET9-430

1000-2100

12×9

M22

Plain

750

0.85

ET9-860

ET9-860

1000-2100

5X3.8

M24

Plain

816

1

ET9-860

ET9-860

1000-2100

6×3.8

M24S

M24 with 316L or 304 Stainless Steel Wire

M30

Plain

1020

1.4

ET9-860

ET9-1250

1000-2100

6×4

M30S

M30 with 316L or 304 Stainless Steel Wire

M35

Plain

1190

1.5

ET9-860

ET9-1800

1000-2100

6×3.8

M35S

M35 with 316L or 304 Stainless Steel Wire

M44

Plain Panama

1500

2

ET9-860

ET9-860

1000-2100

12×5

M52

Plain Panama

1780

3

ET9-860

ET9-1290

1000-2100

6X2/2.5x2

M64

Plain Panama

2300

3

ET9-1290

ET9-1400

1000-2100

12×5


Texturized Fiberglass Cloth is a high-performance industrial fabric woven from air-textured fiberglass yarns, specifically engineered for core applications including high-temperature operations, thermal insulation, and fire protection. As an asbestos-free, eco-friendly material, it has become the preferred protective solution in industries such as metallurgy, petrochemicals, and electric power, thanks to its exceptional high-temperature resistance, thermal insulation, and fireproof properties—combining practicality with reliability.

Core Product Features
1. Excellent High-Temperature Resistance: It can withstand continuous high temperatures of 500-1000℃ for extended periods and resist short-term exposure to even higher temperatures without deformation, carbonization, or damage. This stability ensures reliable performance in extreme high-temperature working conditions, preventing material failure due to heat.
2. Superior Thermal Insulation: With extremely low thermal conductivity, it effectively blocks heat transfer and diffusion, reducing equipment heat loss and energy consumption. It also protects surrounding equipment, pipelines, and operators from high-temperature damage, creating a safe working environment.
3. Efficient Fireproof & Flame-Retardant Performance: Non-combustible, non-melting, and free of toxic fumes when exposed to fire, it quickly forms a fire barrier to prevent flame spread. This provides reliable fire protection for industrial settings and meets industrial fire safety standards.
4. Practical Auxiliary Traits: Boasting good flexibility, tensile strength, and wear resistance, it is easy to cut, wrap, and install, adapting to equipment and pipelines of various shapes. It also offers strong chemical stability, acid-alkali resistance, and anti-aging properties, ensuring a long service life in harsh industrial environments with no frequent replacement needed.

Main Application Uses
1. High-Temperature Equipment Insulation: Ideal for external thermal insulation wrapping of high-temperature equipment such as boilers, industrial furnaces, hot blast stoves, and steam pipelines. It reduces heat loss, improves equipment operational efficiency, and protects casings to extend service life.
2. Industrial Kiln Protection: Suitable for industrial kilns in metallurgy, ceramics, building materials, and other industries. It serves as a thermal insulation and fireproof layer for kiln walls and doors, resisting high-temperature erosion inside the kiln to ensure stable operation and lower maintenance costs.
3. Fire Isolation: Used for fire separation in industrial workshops, power distribution rooms, and other areas, as well as fireproof wrapping for electrical components and cables. It prevents fire spread and safeguards critical equipment and personnel safety.
4. High-Temperature Pipeline Protection: Applied for thermal insulation and fireproof wrapping of high-temperature pipelines in petrochemical, metallurgical, and other industries. It prevents pipeline damage caused by high temperatures and ensures the safe transportation of media.
