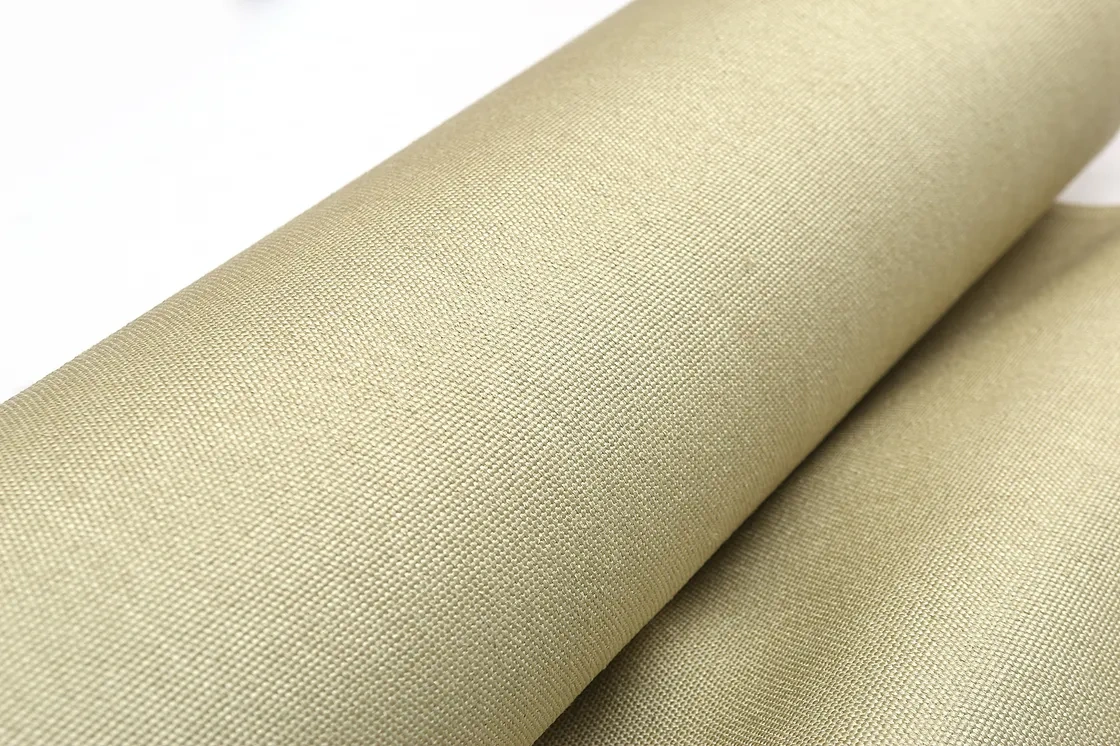

52oz heavy duty vermiculite coated fiberglass fabric for heat barrier is a high-performance heat-resistant and fireproof material, with continuous service temperature up to 815°C and short-term peak up to 1095°C. It combines excellent thermal insulation, flame resistance and molten metal splash protection, featuring good flexibility, wear resistance and chemical stability. Non-combustible, non-toxic and environmentally friendly, it is easy to cut, sew and install. Widely used in welding, metallurgy, industrial insulation, fire safety, automotive and aerospace fields. Ideal for furnace insulation, welding blankets and high-temperature pipe wraps, providing reliable protection and long service life.

Fiberglass Type

E-Glass

Weave

Plain

Finish

Vermiculite

Thickness

1.0mm

Weight

1050gsm

Color

Brown/tan/golden

Width

1000mm-2000mm

REQUEST A QUOTE

Description

Product Parameters:

Attribute	Specification
Base Material	High Silica Fiberglass Fabric (SiO₂ content ≥ 96%). Fiberglass Fabric
Coating Type	Vermiculite Coating
Color	Bronze-gold
Weaving Pattern	Plain, Satin or twill weave.
Unit Area Weight	600g/㎡-2500g/㎡, including coating).
Thickness	0.03 in (0.75 mm) to 0.10 in (2.5 mm)
Size Range	50m/roll; customizable.
Temperature Resistance	– Coating: Fixed working temperature 810°C (1490°F), maximum instantaneous 1090°C (1994°F).
Temperature Resistance	– Base Fabric Silica: Continuous working temperature 1000°C (1832°F) Glass: Continuous working temperature 550°C (1022°F)
Thermal Shock Resistance	Excellent, maintaining physical stability during rapid temperature changes.
Protective Properties	– High-Temperature Resistance: Coating absorbs and reflects heat, reducing thermal transfer and protecting the substrate.
Protective Properties	– Molten Metal Splash Resistance: Effectively shields against molten metal drops and metal debris impacts.
Abrasion Resistance	High surface hardness resists wear and peeling, suitable for high-temperature mechanical environments.
Chemical Resistance	Resistant to weak acids and alkalis, applicable in specific chemical environments.
Flexibility	Moderate, suitable for fixed installation and repeated use.
Water Permeability	None.
Ease of Cleaning	Smooth, hardened coating reduces dust and particle adhesion, easy to clean.
Applications	– High-Temperature Welding & Cutting: Protects work areas from sparks and slag impacts.
	– Steel Mills & Foundries: Resists molten metal drops and debris impacts.
	– Industrial Kilns & Equipment Insulation: Provides coverage and thermal insulation for equipment.
	– Building Fireproofing: Ideal for fireproof curtains, wall insulation, and building safety.

Key Characteristics

Extreme Temperature Resistance: Continuous service up to 800–815°C (1470–1500°F), short‑term peak to 1000–1095°C (1830–2000°F).
Excellent Thermal Insulation: Low thermal conductivity, forms an effective heat barrier.
Superior Fire & Flame Resistance: Non‑combustible, resists direct flame and prevents fire spread.
Abrasion & Mechanical Durability: Coating reinforces surface, reduces wear, tearing, and fiber shedding.
Molten Metal Splash Protection: Defends against molten aluminum, zinc, steel, and welding sparks/slag.
Chemical Stability: Resists acids, alkalis, ozone, UV, and weathering; low moisture absorption.
Good Flexibility & Fabricability: Remains pliable for cutting, sewing, wrapping, and custom shaping.
Electrical Insulation: Inherits good dielectric properties from fiberglass.
Long Service Life: Reduced maintenance and replacement frequency in harsh environments.

Core Benefits

Unmatched High‑Temperature Protection for critical industrial and safety applications.
Enhanced Safety against fire, heat, and molten metal hazards.
Energy Efficiency via reduced heat loss in insulated systems.
Cost Savings from longer lifespan and lower maintenance.
Versatility across industries and fabrication methods.
Environmentally Friendly inorganic, non‑toxic, low outgassing material.
