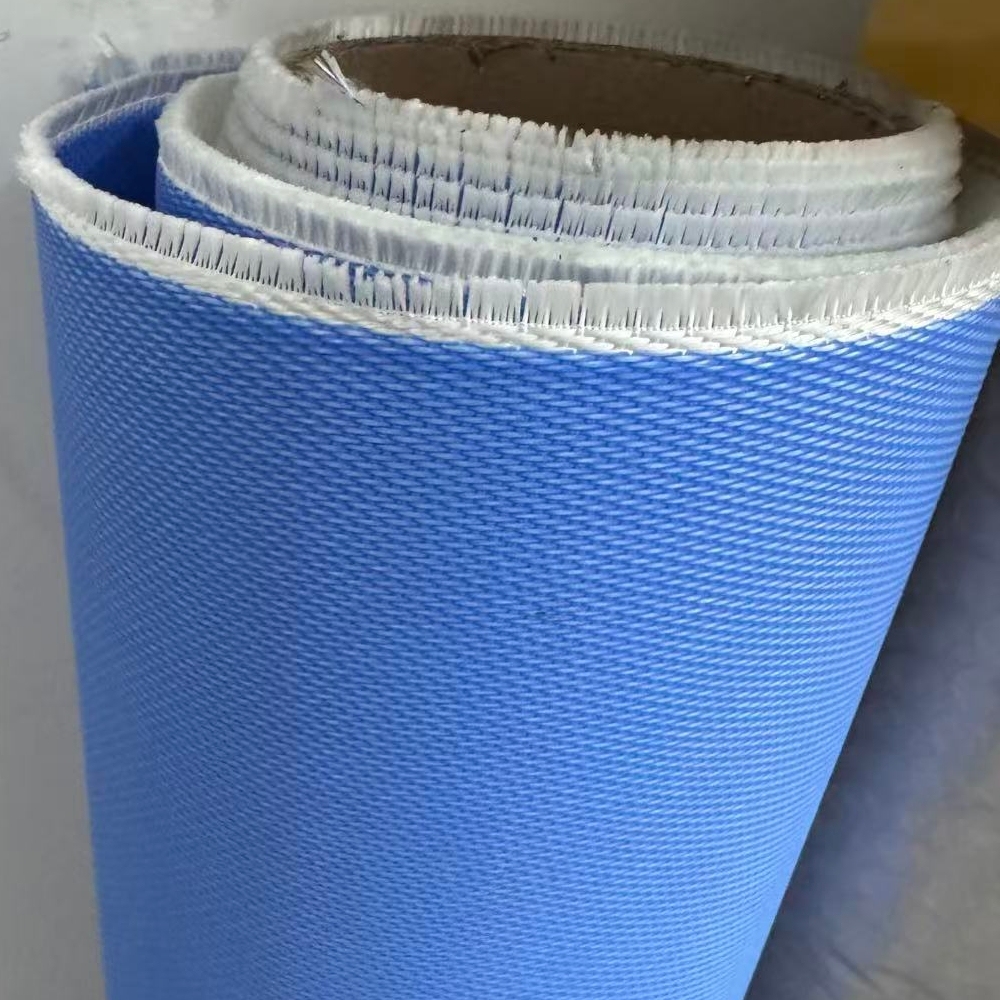

• blue PU coated fiberglass cloth for textile roller fire shutters

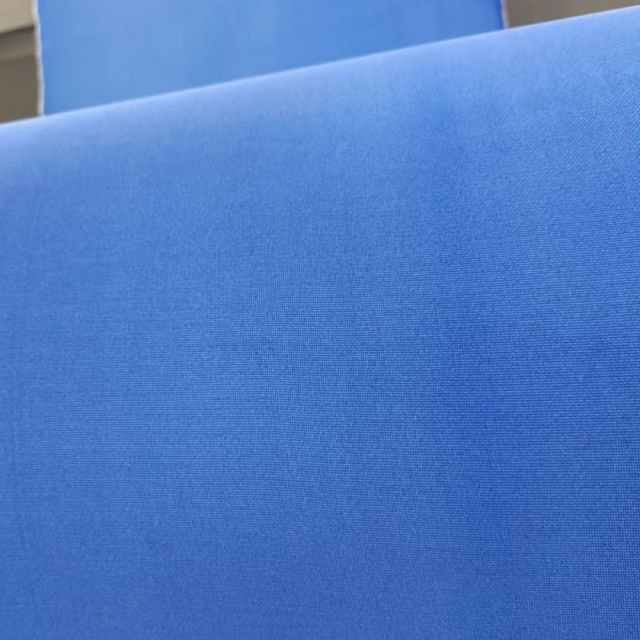

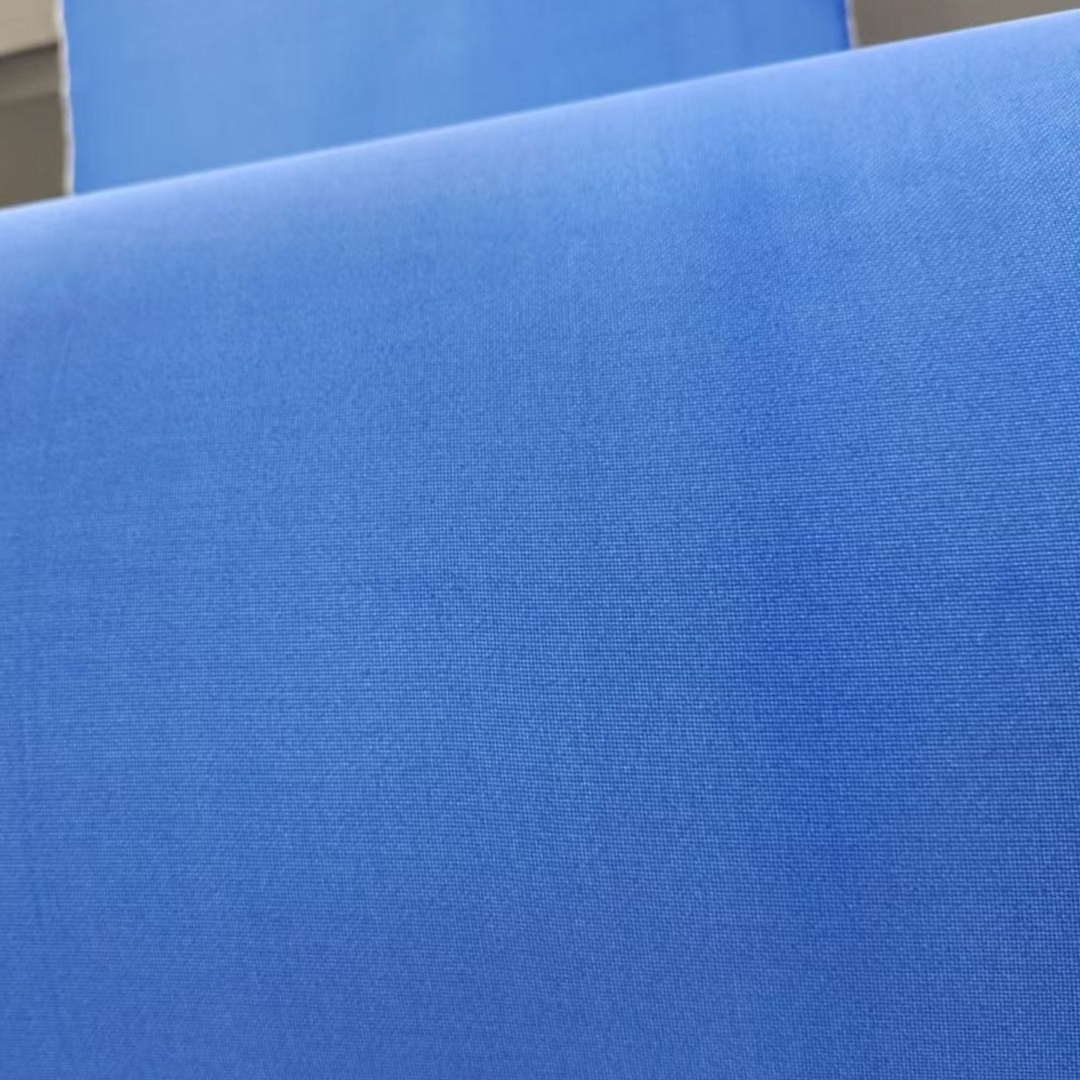

  • 0.7mm 700gsm blue pu coated fiberglass fabric

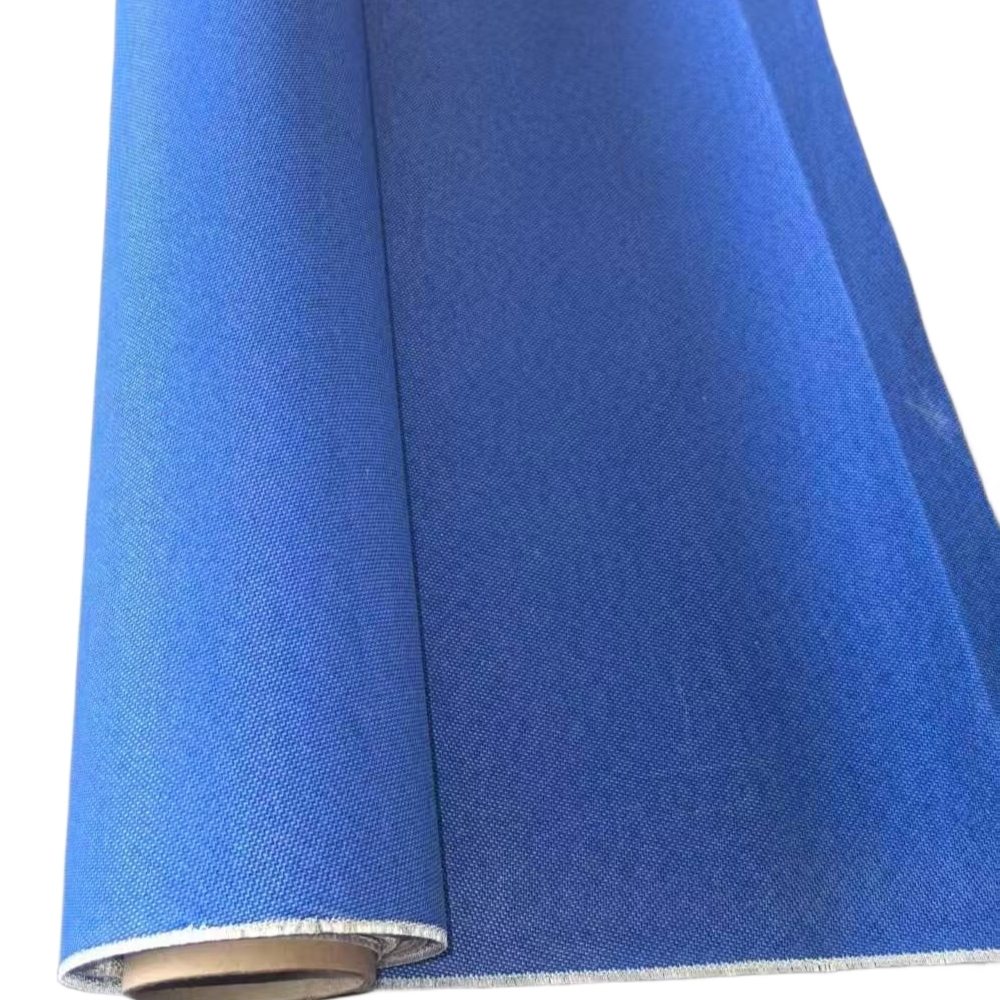

  • blue colour polyurethane coated fiberglass fabric with wire inserts

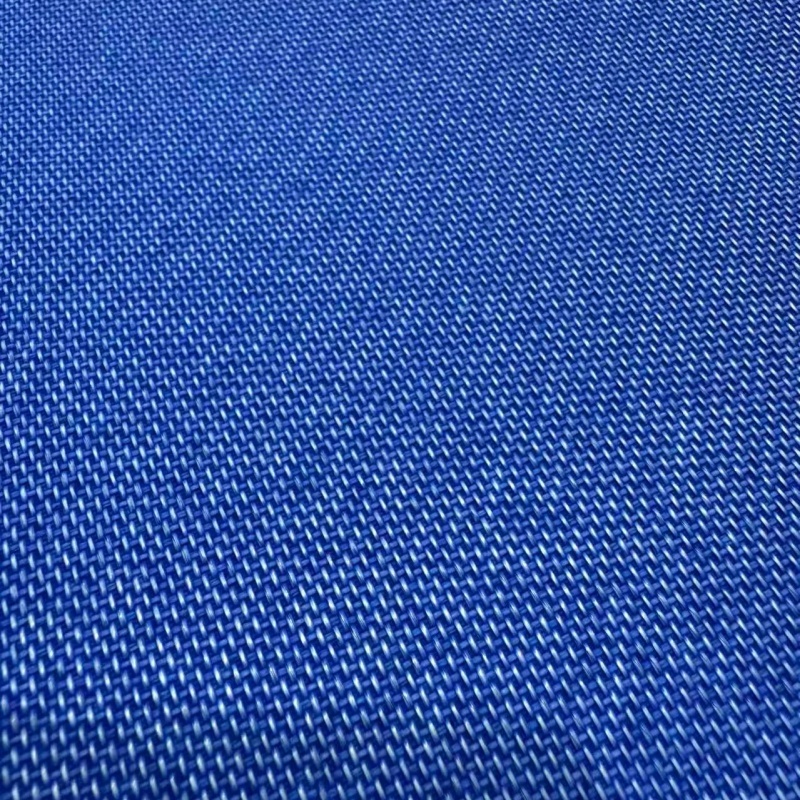

  • 8H satin weave steel wire reinforced fiberglass fabric with blue PU coating

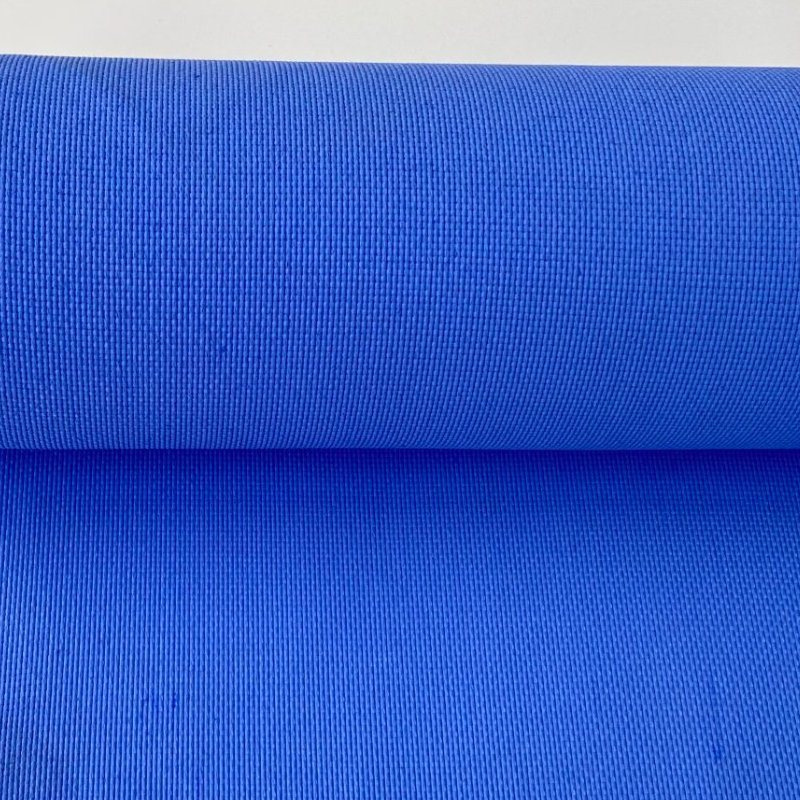

  • double sided blue coating pu fiberglass  cloth
  • blue PU coated fiberglass cloth for textile roller fire shutters
  • 0.7mm 700gsm blue pu coated fiberglass fabric
  • blue colour polyurethane coated fiberglass fabric with wire inserts
  • 8H satin weave steel wire reinforced fiberglass fabric with blue PU coating
  • double sided blue coating pu fiberglass  cloth

700gsm E-Glass blue PU coated fiberglass fabric

No.FF06U2
$3.20
Base Fabric Weight:
640gsm
Side:
2
Fire Performance:
Premium
Yarn type:
E-Glass
E-Glass+S.S Wire
Color:
Blue
  • blue PU coated fiberglass cloth for textile roller fire shutters
  • 0.7mm 700gsm blue pu coated fiberglass fabric
  • blue colour polyurethane coated fiberglass fabric with wire inserts
  • 8H satin weave steel wire reinforced fiberglass fabric with blue PU coating
  • double sided blue coating pu fiberglass  cloth
  • Description

  • Custom Options

Product Parameters:
PU Coated Fiberglass Fabrics (Regular)
Code Fabric Thickness
(mm)
Fabric Weight
(g/m2)
 Coating Weight
(g/m2)
Coating side
FF02U1 0.2 210 20 1
FF04U1 0.4 430 20 1
FF04U2 0.4 430 40 2
FF06U1 0.6 660 20 1
FF06U2 0.6 660 40 2
FF04SU1* 0.4 480 20 1
FF04SU2* 0.4 480 40 2
FF06SU1* 0.6 640 20 1
FF06SU2* 0.6 640 40 2
SF06U2** 0.6 600 40 2
Available width: 1000mm, 1200mm, 1520mm etc.
Available color: grey, red, blue, etc.
Temperature: Fiberglass 550℃ PU 150℃
* Stainless steel wire reinforced fiberglass fabric with PU coating
** High silica fabric with PU coating

Description:
Bule PU coated fiberglass fabric for fire rated textile roller shutters is a flame resistant fabric for fire safety applications in industrial, commercial, and construction fields. It's crafted by uniformly coating premium fire resistant polyurethane (PU) resin onto a high strength woven fiberglass base cloth. Blue is commonly used for this application in some countries, while other colors such as gray and white are also available.

Key Features
Our PU coated fiberglass fabric stands out for its exceptional properties, tailored to meet the demands of various sectors. Whether you need a lightweight, flexible material or a heavy-duty, wear-resistant solution, our PU coated fiberglass fabric delivers consistent performance:

  1. High Strength & Durability: Backed by a high-strength fiberglass base, our PU coated fiberglass fabric boasts excellent tensile strength, tear resistance, and dimensional stability. It resists stretching, shrinking, and deformation, even under heavy loads or prolonged use, ensuring a long service life.
  2. Flexibility & Easy Fabrication: Unlike rigid composite materials, PU coated fiberglass fabric is highly flexible, allowing for easy cutting, folding, sewing, and bonding. It can be fabricated into custom shapes, sizes, and finished products (such as covers, curtains, and membranes) to fit any application.
  3. Fire Retardant & Safe: Compliant with global fire safety standards, our PU coated fiberglass fabric is flame-retardant, low-smoke, and low-toxic. It inhibits flame spread and releases no harmful gases, ensuring safety in industrial, commercial, and public spaces.

Applications
1. Passive Fire Protection (PFP) Systems
Fire & Smoke Curtains: Specifically engineered for vertical or horizontal automatic fire barriers in commercial complexes, elevator shafts, and warehouses. These fabrics ensure compartmentalization to prevent the spread of flames and toxic gases, meeting EN 13501-1 and UL standards.

2. Industrial HVAC & Energy Sector
Smoke Extraction Ductwork: Used in the fabrication of flexible connectors for smoke spill fans and high-temperature ventilation systems.

3. Welding & Hot Work Safety
Welding Blankets: Serves as a high-performance shield for sparks and molten metal splash (slag) in shipbuilding, automotive repair, and oil & gas maintenance.

4. Thermal Insulation & Equipment Protection
Equipment Protection Covers: Protective shielding for sensitive robotic arms, cables, and hydraulic lines in high-heat industrial environments (e.g., foundries or glass manufacturing).

Coating Methods: Single or double-sided coating
Coating weight: Highly customizable.
Custom cutting: Minimum width around 10 cm.
Custom printing: Your logo, product codes and other markings can be printed on request.

Reinforcement:
Strength: Some stainless steel wire reinforced E-Glass fabrics available for improved strength.
Fire performance: High-temperature resistant fillers can be added to work synergistically with polyurethane and flame retardants, enabling the material to remain intact after 120 minutes of fire exposure.
