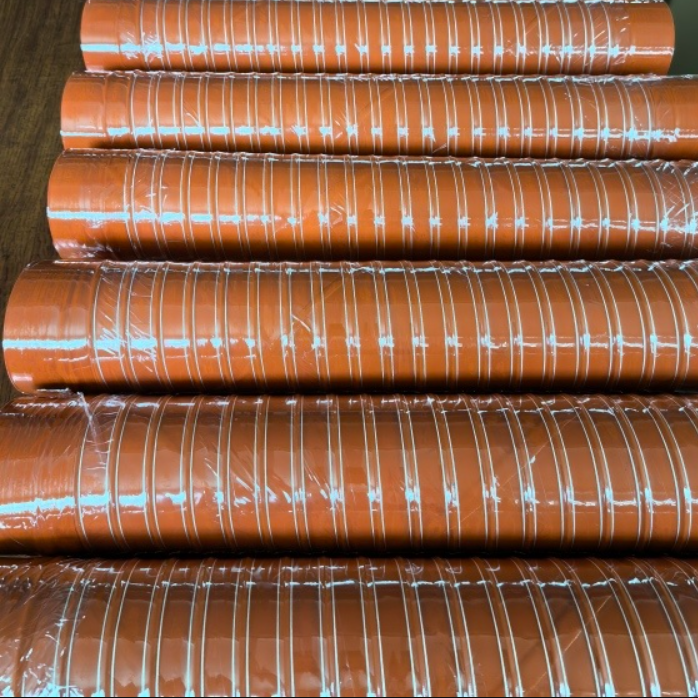

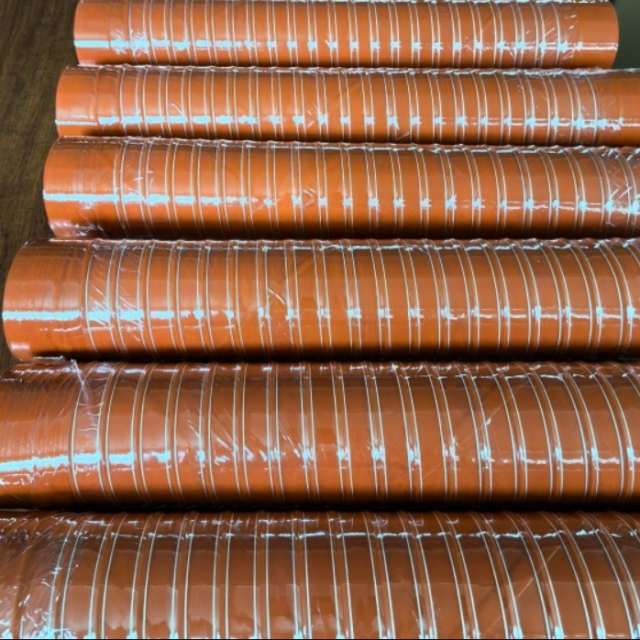

Name: Heat and aging resistant silicone coated fiberglass fabric for flexible ducting hoses
Brand: ThermaxCo
Availability: InStock
Rating: 5 (1 reviews)

Fiberglass Type

E-Glass

Weave

Plain

Finish

Silicone coated

Thickness

0.3mm(±10%)

Weight

400g/m2

Width

100mm-1200mm

Color

Grey, red, black, white, green, yellow

REQUEST A QUOTE

Description
Custom Options

Product Parameters:

Silicone Coated Fiberglass Fabrics
Code	Fabric Thickness (mm)	Fabric Weight (g/m2)	Coating Weight (g/m2)	Coating side
FF02KR1	0.2	210	50	1
FF02KR2	0.2	210	100/130/200	2
FF04KR1	0.4	430	80/100	1
FF04KR2	0.4	430	50/130/150/300	2
FF06KR1	0.7	660	120/150/300	1
FF06KR2	0.7	660	200/240/300	2
FF08KR1	0.8	880	130/150/300	1
FF08KR2	0.8	880	200/260/300/500	2
FF13KR2	1.3	1300	300/500	2
FF17KR2	1.7	1700	400/500/600	2
FF04KSR1*	0.4	480	100/130	1
FF04KSR2*	0.4	480	150/250	2
FF06KSR1*	0.6	640	150/200/250	1
FF06KSR2*	0.6	640	260/300/400	2
SF06KR1**	0.6	600	150/200	1
SF06KR2**	0.6	600	250/300	2
Available width: 1000mm, 1200mm, 1520mm Typical color: grey, red, black, white, yellow, green, blue etc. Temperature: Fiberglass 550℃ Silicone 260℃ * Stainless steel wire reinforced fiberglass fabric with silicone coating ** high silica fabric with silicone coating

Silicone Calendered Fiberglass Fabrics
Code	Finished Thickness (g/m2)	Width (g/m2)	Coating side
FF06CR1	0.6	1000/1200	1
FF06CR2	0.7	1000/1200	2
FF10CR1	1.0	1000/1200	1
FF10CR2	1.0	1000/1200	2
FF12CR1	1.2	1000/1200	1
FF12CR2	1.2	1000/1200	2
FF15CR1	1.5	1000/1200	1
FF15CR2	1.5	1000/1200	2
TF20CR1	2.0	1000/1200	1
TF20CR2	2.0	1000/1200	2
TF25CR1	2.5	1000/1200	1
TF25CR2	2.5	1000/1200	2
TF30CR1	3.0	1000/1200	1
TF30CR2	3.0	1000/1200	2
TF50CR2	5.0	1000/1200	2
Available color: grey, red, black, white, yellow, green, blue, dark grey, etc. Temperature: Fiberglass 550℃ Silicone 260℃ Stainless steel wire reinforcement is available to enhance the fabric performance of higher strength and long using life

Applications

Industrial Insulation and Protection: Used for removable insulation jackets, thermal insulation barriers, pipe wrap, and bellows.
Fire and Safety: Ideal for welding curtains, fire barriers, and blankets designed to resist molten metal splash and flames.
Sealing and Gasketing: Used to create flexible seals, gaskets, and gaskets in machinery, particularly in high-temperature environments.
Manufacturing and Material Handling: Used as conveyor belts, heat-resistant, or non-stick surfaces in manufacturing processes.
Outdoor and Technical Textiles: Used in tents, awnings, and bags due to its waterproofing, lightweight, and UV-resistant properties.
Medical and Specialized Sectors: Used in medical devices due to its durability and non-toxic properties.

Coating Methods: Single or double-sided coating, liquid or calendered silicone.
Reinforcement: Some stainless steel wire reinforced fabrics available for improved strength.
Coating weight: Highly customizable.
Custom cutting: Minimum width around 10 cm.
Custom printing: Your logo, product codes and other markings can be printed on request.
Antistatic coating: Available in black and grey color, for now.
Ceramicized coating: Available as requested

BASE FABRICS FOR TREATMENT: High Silica Fabrics; Filament fiberglass fabrics; Texturized Fiberglass Fabrics; Steel Wire Reinforced Fiberglass Fabrics

RECOMMENDED: Coated Fiberglass fabrics; High Silica Fabrics; Aluminized Glass Fabrics; PTFE Coated Fabrics; Hi-temp Sewing Threads
