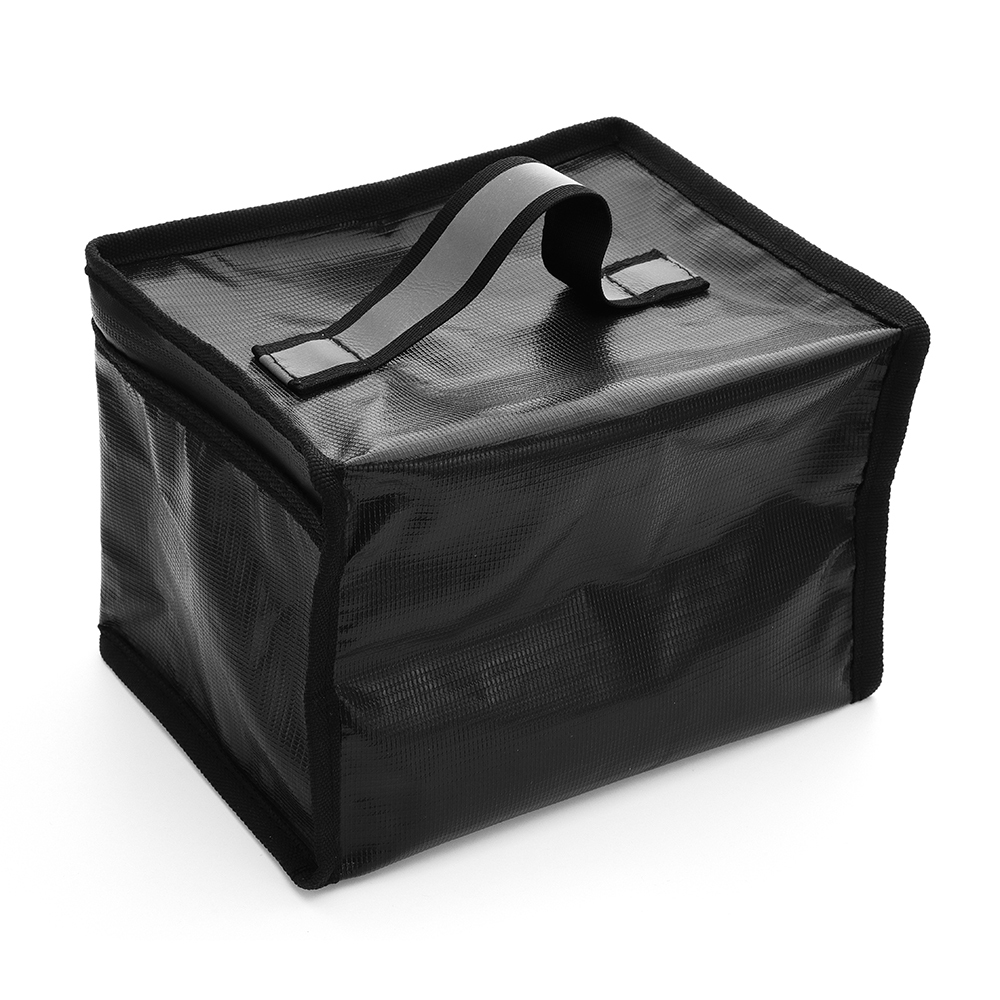

Heat resistant ceremic silicone coated fiberglass fabric for lithium battery bags is a fiberglass fabric woven from high quality E-glass filament yarn, and then coated with a specially formulated wet silicone rubber on one side or both sides. This fabric provides good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals. It's primarily used for high-temperature insulation, fire protection, and environmental sealing.It is heavily used for welding blankets, thermal insulation blankets(jackets covers pads), expansion joints, protective covers, conveyor belts, and waterproof outdoor gear.This durable material provides resistance to chemicals, UV light, and heat up to 260°C
| Silicone Coated Fiberglass Fabrics | ||||
| Code | Fabric Thickness (mm) | Fabric Weight (g/m2) | Coating Weight (g/m2) | Coating side |
| FF02KR1 | 0.2 | 210 | 50 | 1 |
| FF02KR2 | 0.2 | 210 | 100/130/200 | 2 |
| FF04KR1 | 0.4 | 430 | 80/100 | 1 |
| FF04KR2 | 0.4 | 430 | 50/130/150/300 | 2 |
| FF06KR1 | 0.7 | 660 | 120/150/300 | 1 |
| FF06KR2 | 0.7 | 660 | 200/240/300 | 2 |
| FF08KR1 | 0.8 | 880 | 130/150/300 | 1 |
| FF08KR2 | 0.8 | 880 | 200/260/300/500 | 2 |
| FF13KR2 | 1.3 | 1300 | 300/500 | 2 |
| FF17KR2 | 1.7 | 1700 | 400/500/600 | 2 |
| FF04KSR1* | 0.4 | 480 | 100/130 | 1 |
| FF04KSR2* | 0.4 | 480 | 150/250 | 2 |
| FF06KSR1* | 0.6 | 640 | 150/200/250 | 1 |
| FF06KSR2* | 0.6 | 640 | 260/300/400 | 2 |
| SF06KR1** | 0.6 | 600 | 150/200 | 1 |
| SF06KR2** | 0.6 | 600 | 250/300 | 2 |
| Available width: 1000mm, 1200mm, 1520mm Typical color: grey, red, black, white, yellow, green, blue etc. Temperature: Fiberglass 550℃ Silicone 260℃ * Stainless steel wire reinforced fiberglass fabric with silicone coating ** high silica fabric with silicone coating | ||||
| Silicone Calendered Fiberglass Fabrics | |||
| Code | Finished Thickness (g/m2) | Width (g/m2) | Coating side |
| FF06CR1 | 0.6 | 1000/1200 | 1 |
| FF06CR2 | 0.7 | 1000/1200 | 2 |
| FF10CR1 | 1.0 | 1000/1200 | 1 |
| FF10CR2 | 1.0 | 1000/1200 | 2 |
| FF12CR1 | 1.2 | 1000/1200 | 1 |
| FF12CR2 | 1.2 | 1000/1200 | 2 |
| FF15CR1 | 1.5 | 1000/1200 | 1 |
| FF15CR2 | 1.5 | 1000/1200 | 2 |
| TF20CR1 | 2.0 | 1000/1200 | 1 |
| TF20CR2 | 2.0 | 1000/1200 | 2 |
| TF25CR1 | 2.5 | 1000/1200 | 1 |
| TF25CR2 | 2.5 | 1000/1200 | 2 |
| TF30CR1 | 3.0 | 1000/1200 | 1 |
| TF30CR2 | 3.0 | 1000/1200 | 2 |
| TF50CR2 | 5.0 | 1000/1200 | 2 |
| Available color: grey, red, black, white, yellow, green, blue, dark grey, etc. Temperature: Fiberglass 550℃ Silicone 260℃ Stainless steel wire reinforcement is available to enhance the fabric performance of higher strength and long using life | |||
Applications
