| Silicone Coated Fiberglass Fabrics | ||||
| Code | Fabric Thickness (mm) |
Fabric Weight (g/m2) |
Coating Weight (g/m2) |
Coating side |
| FF02KR1 | 0.2 | 210 | 50 | 1 |
| FF02KR2 | 0.2 | 210 | 100/130/200 | 2 |
| FF04KR1 | 0.4 | 430 | 80/100 | 1 |
| FF04KR2 | 0.4 | 430 | 50/130/150/300 | 2 |
| FF06KR1 | 0.7 | 660 | 120/150/300 | 1 |
| FF06KR2 | 0.7 | 660 | 200/240/300 | 2 |
| FF08KR1 | 0.8 | 880 | 130/150/300 | 1 |
| FF08KR2 | 0.8 | 880 | 200/260/300/500 | 2 |
| FF13KR2 | 1.3 | 1300 | 300/500 | 2 |
| FF17KR2 | 1.7 | 1700 | 400/500/600 | 2 |
| FF04KSR1* | 0.4 | 480 | 100/130 | 1 |
| FF04KSR2* | 0.4 | 480 | 150/250 | 2 |
| FF06KSR1* | 0.6 | 640 | 150/200/250 | 1 |
| FF06KSR2* | 0.6 | 640 | 260/300/400 | 2 |
| SF06KR1** | 0.6 | 600 | 150/200 | 1 |
| SF06KR2** | 0.6 | 600 | 250/300 | 2 |
| Available width: 1000mm, 1200mm, 1520mm Typical color: grey, red, black, white, yellow, green, blue etc. Temperature: Fiberglass 550℃ Silicone 260℃ * Stainless steel wire reinforced fiberglass fabric with silicone coating ** high silica fabric with silicone coating |
||||
| Silicone Calendered Fiberglass Fabrics | |||
| Code | Finished Thickness (g/m2) |
Width (g/m2) |
Coating side |
| FF06CR1 | 0.6 | 1000/1200 | 1 |
| FF06CR2 | 0.7 | 1000/1200 | 2 |
| FF10CR1 | 1.0 | 1000/1200 | 1 |
| FF10CR2 | 1.0 | 1000/1200 | 2 |
| FF12CR1 | 1.2 | 1000/1200 | 1 |
| FF12CR2 | 1.2 | 1000/1200 | 2 |
| FF15CR1 | 1.5 | 1000/1200 | 1 |
| FF15CR2 | 1.5 | 1000/1200 | 2 |
| TF20CR1 | 2.0 | 1000/1200 | 1 |
| TF20CR2 | 2.0 | 1000/1200 | 2 |
| TF25CR1 | 2.5 | 1000/1200 | 1 |
| TF25CR2 | 2.5 | 1000/1200 | 2 |
| TF30CR1 | 3.0 | 1000/1200 | 1 |
| TF30CR2 | 3.0 | 1000/1200 | 2 |
| TF50CR2 | 5.0 | 1000/1200 | 2 |
| Available color: grey, red, black, orange etc. Temperature: Fiberglass 550℃ Silicone 260℃ Stainless steel wire reinforcement is available to enhance the fabric performance of higher strength and long using life |
|||
Description:

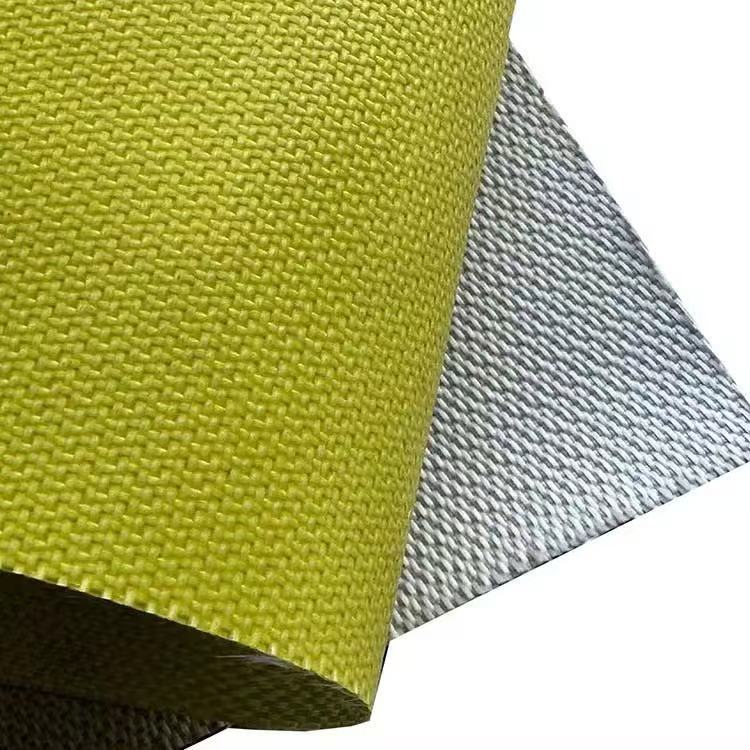

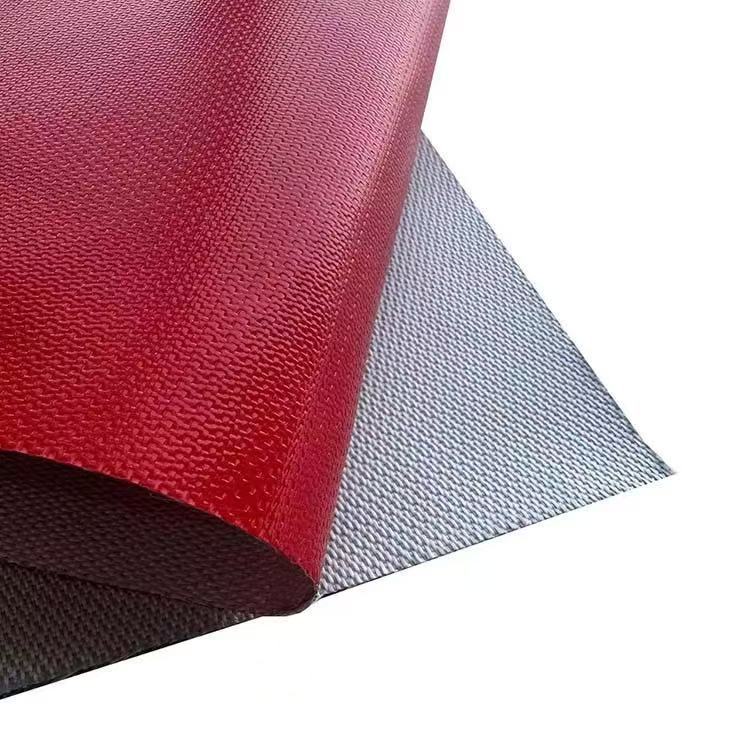

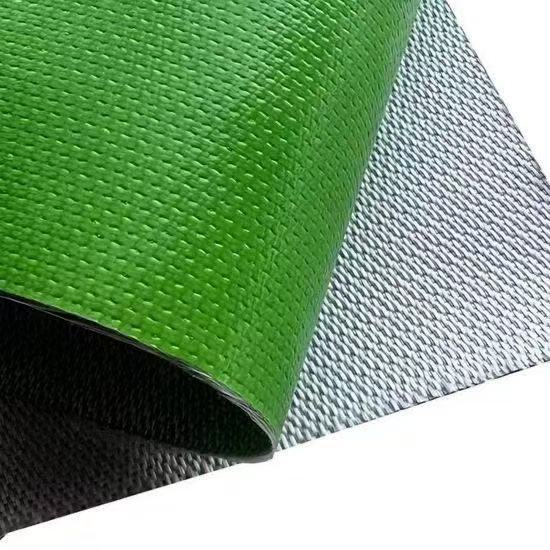

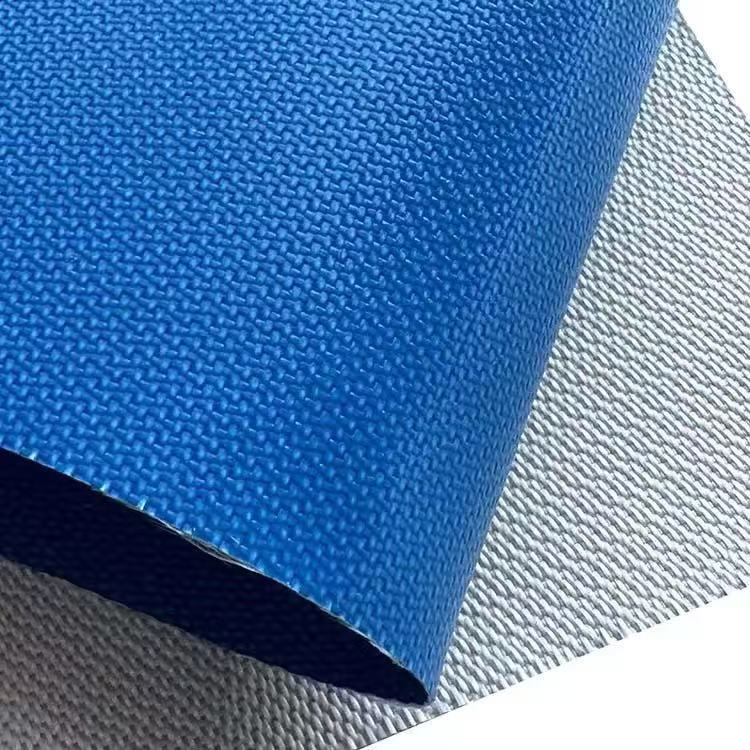

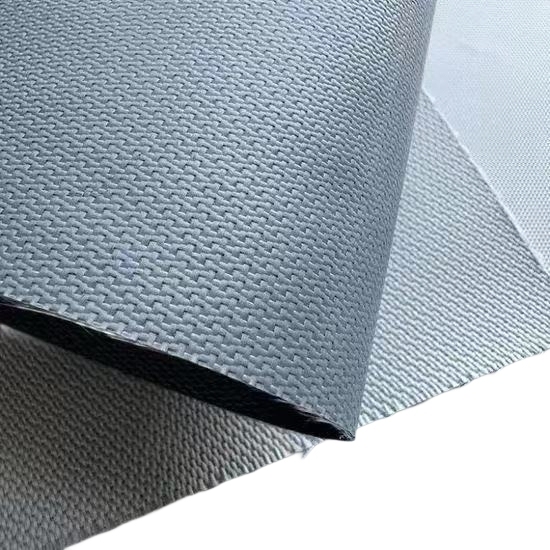

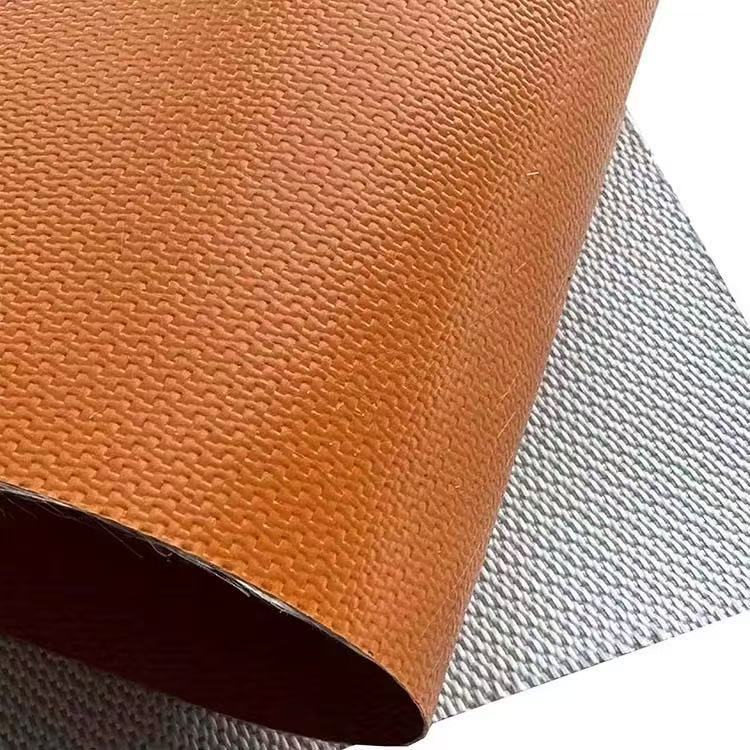

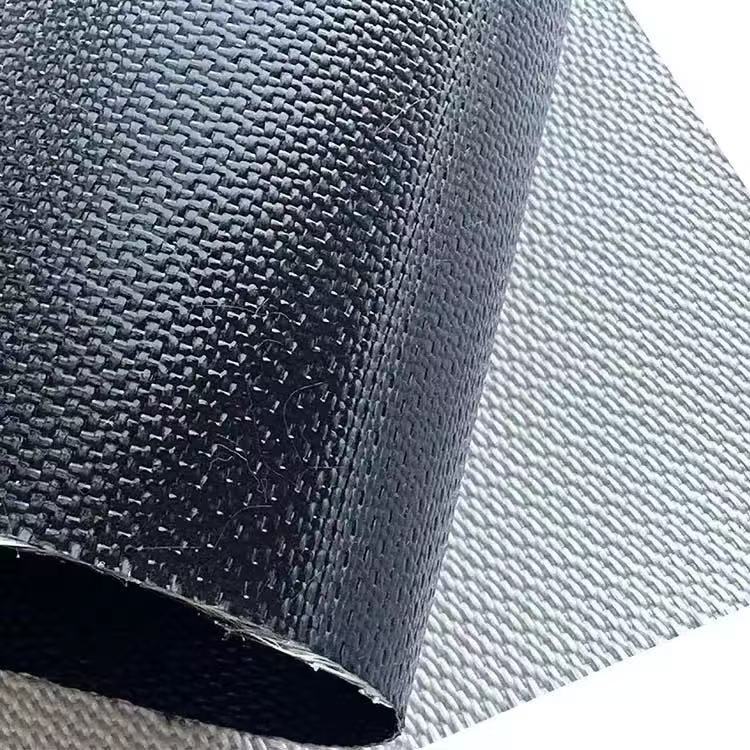

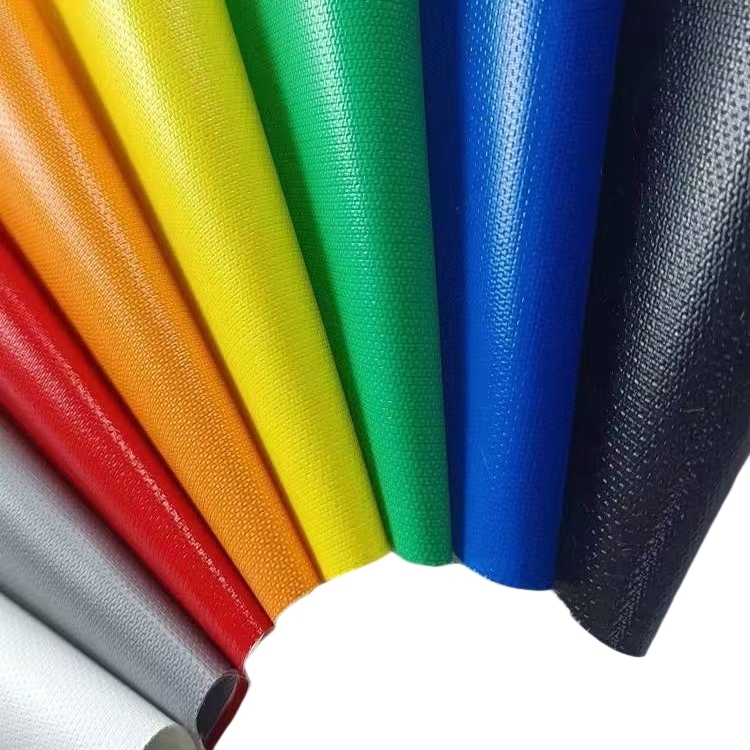

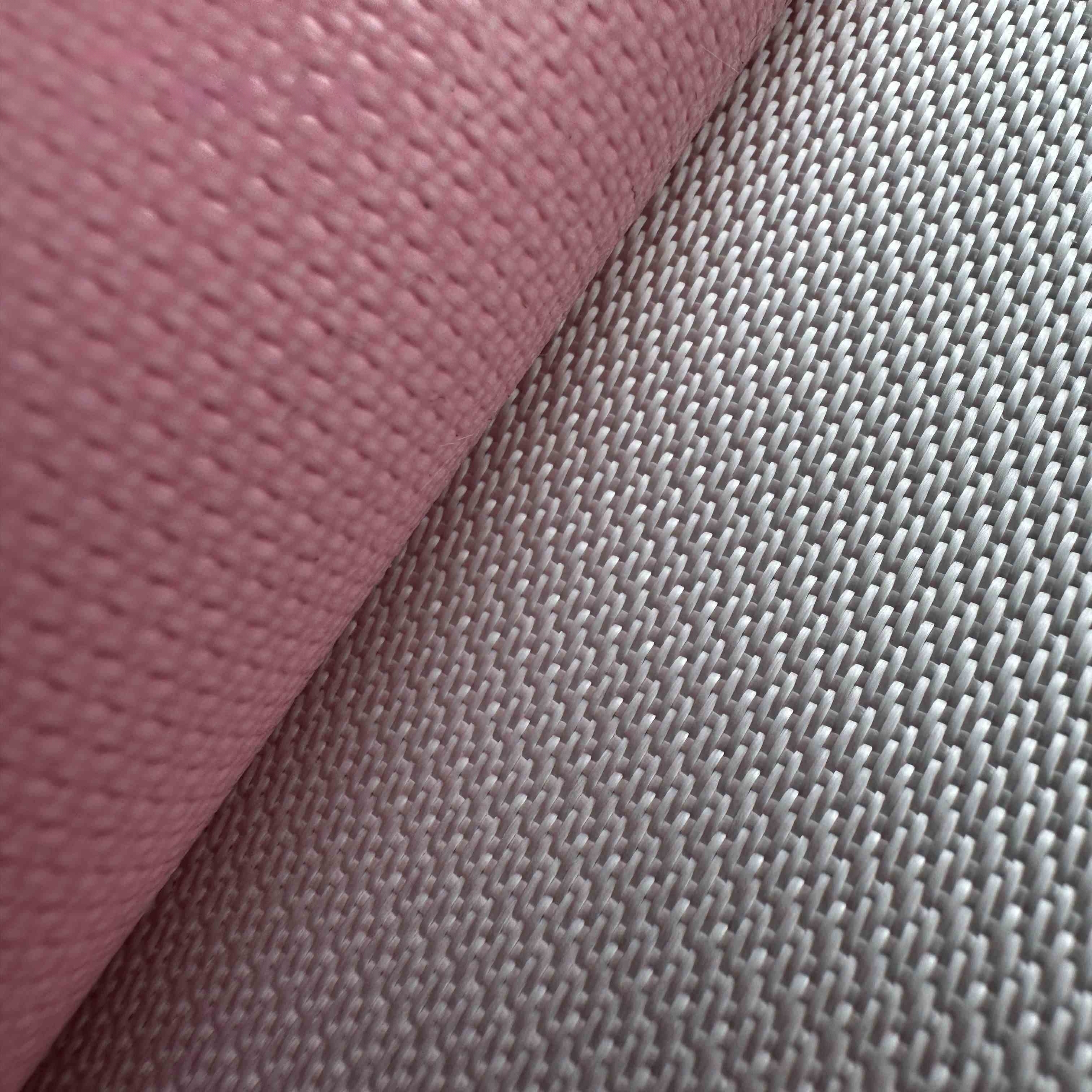

Multiple-color silicone coated fiberglass cloth is available in a full range of colors including grey, red, yellow, orange, blue, black, white, green, pink, salmon and more. This high-performance fiberglass fabric features excellent heat resistance, insulation, durability and flexibility, widely used in thermal insulation, fire protection, electrical insulation and industrial sealing applications. Custom colors are available with minimum order quantity (MOQ). Please contact us for further details and customization support.
