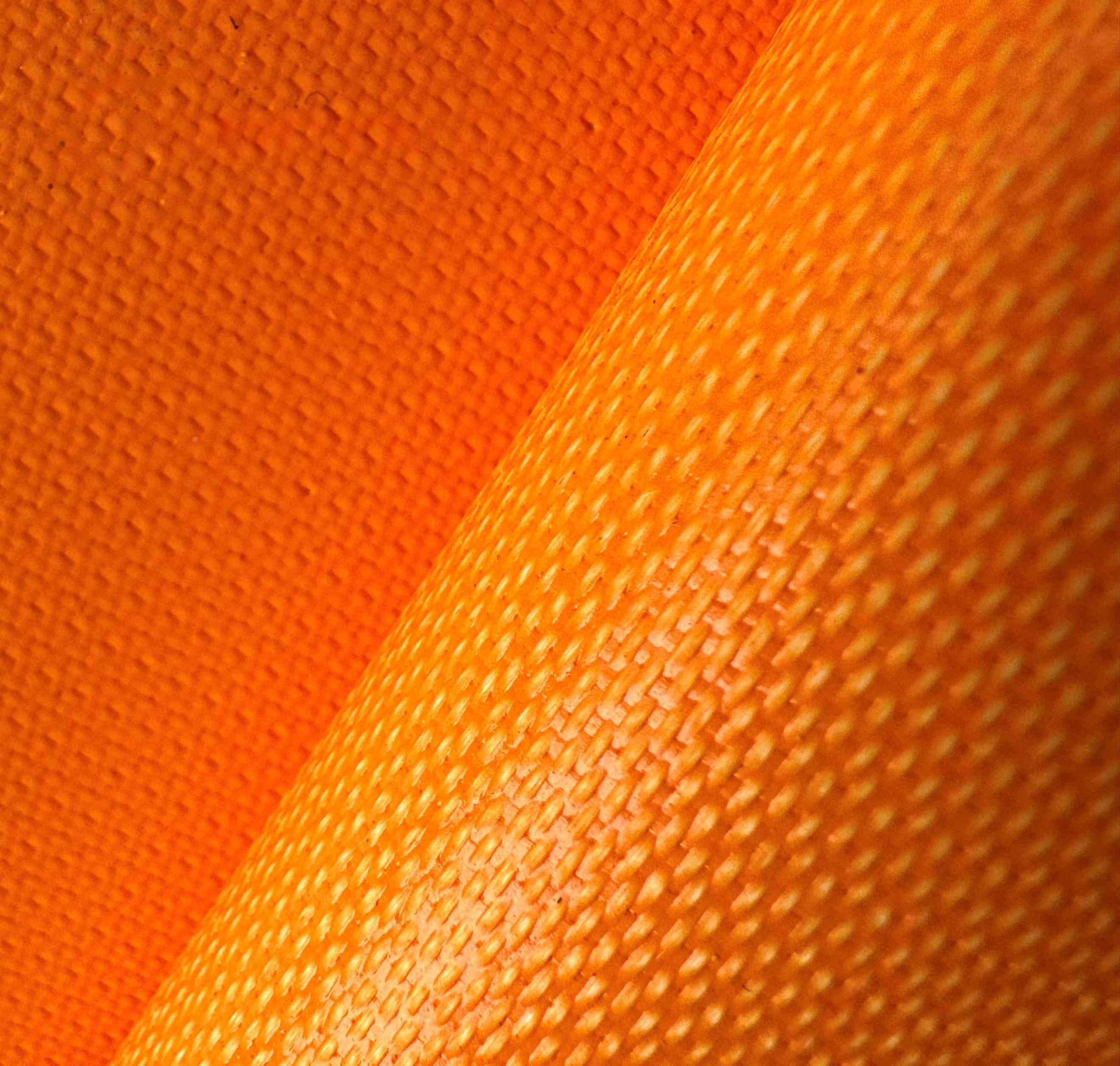

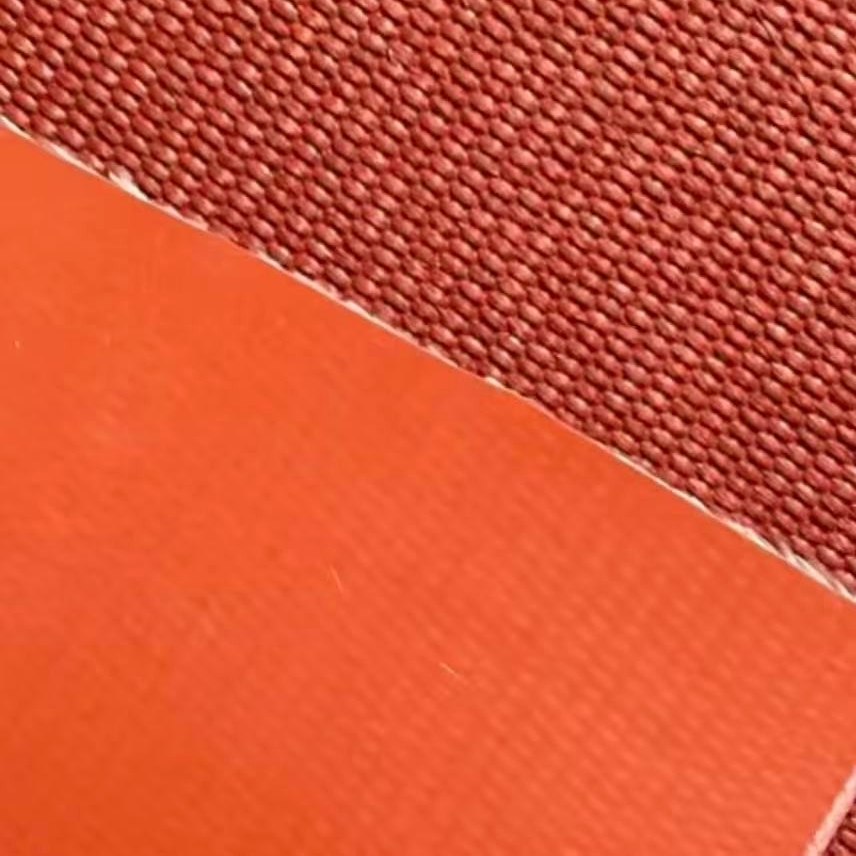

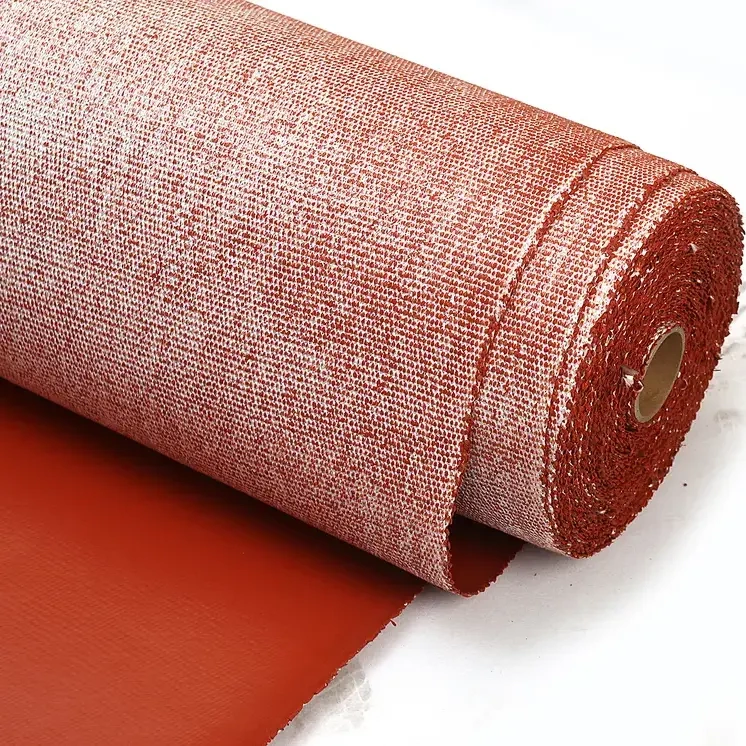

Silicone rubber coated fiberglass cloth for flexible fabric bellows is a high temperature industrial fabric woven from high quality E-glass filament yarn, and then coated with a specially formulated wet (liquid) silicone rubber on one side or both sides. This fabric provides good properties of flexibility, durability, water and oil proof, abrasion resistance, and excellent resistance for general chemicals. It's primarily used for high-temperature insulation, fire protection, and environmental sealing.It is heavily used for welding blankets, thermal insulation blankets(jackets covers pads), expansion joints, protective covers, conveyor belts, and waterproof outdoor gear.This durable material provides resistance to chemicals, UV light, and heat up to 260°C
| Attribute | Specification |
| Base Material | Glass Fiber Fabric |
| Coating Type | Silicone Rubber Coating |
| Coating Side | single or double sided |
| Color | Gray, red, white, black, blue, green, yellow, orange, etc |
| Weaving Pattern | Plain, twill or satin weave. |
| Unit Area Weight | 250g/ãĄ-2500g/ãĄ, including coating). |
| Thickness | 0.2 mm (0.008 in) to 2 mm (0.08 in); customizable. |
| Size | Standard: 1m × 50m per roll; customizable. |
| Temperature Resistance | – Coating: 500°F (260°C) for continuous use. |
| – Base Fabric: 1022°F (550°C) for continuous use. | |
| – Short-term Exposure: Coating can withstand up to 572°F (300°C) momentarily. | |
| Protective Properties | – Flame-Resistant: Coating meets international standards. |
| – Waterproof: Excellent water resistance. | |
| – Oil and Chemical Resistance: Suitable for oil and chemical-rich environments. | |
| Abrasion Resistance | Enhanced by silicone coating, suitable for frequent mechanical contact. |
| Anti-Aging Properties | – Excellent UV resistance for long-term outdoor use. |
| – Strong oxidation resistance for extended service life. | |
| Flexibility | High; suitable for folding, rolling, and use in complex environments. |
| Water Permeability | None. |
| Applications | Ideal for fire-resistant, waterproof, and chemically-resistant welding and insulation operations, as well as humid, oily, and chemical environments. |
Applications and Advantages:
| Application Area | Specific Uses | Key Advantages |
|---|---|---|
| đĨ High Temperature & Fire Protection | Welding blankets / welding curtains, industrial / new energy (EV) fire blankets, fire curtains, smoke baffles | Withstands instantaneous high temperature (up to 550â+), blocks fire and oxygen, prevents molten splashes and sparks |
| đ§ Thermal Insulation Systems | Outer layer material for removable insulation jackets/covers for pipes, valves, flanges and industrial equipment | Protects internal insulation, waterproof, oil-resistant and anti-aging, reduces heat loss and safety risks |
| đ¨ Flexible Connections & Expansion Joints | Flexible duct connectors, base material for non-metallic expansion joints (compensators) | Absorbs thermal displacement and vibration of pipelines, excellent air tightness and fatigue resistance |
| âī¸ Industrial Protection & Sealing | Engine heat shields, high-temperature gaskets, outdoor equipment waterproof covers, corrosion-resistant gaskets | Chemical resistant, weather resistant, tear resistant, suitable for harsh working conditions |
| ⥠Electrical Insulation | High-temperature insulation cloth, sleeves, insulation materials for motors / electrical appliances | High insulation strength, stable electrical performance at high and low temperatures |
| đ Corrosion Protection & Marine | Internal and external anti-corrosion layers for pipelines, marine engine insulation, marine equipment protective covers | Salt spray resistant, corrosion resistant, water resistant, extends service life of equipment |
| đī¸ Construction & New Energy | Architectural membrane structures, photovoltaic backsheets, fire barriers for power batteries | UV resistant, flame retardant, suitable for new energy and green building applications |
