| Attribute | Specification |
| Base Material | Glass Fiber Fabric, |
| Coating Type | Silicone Rubber Coating |
| Coating Side | single or double sided |

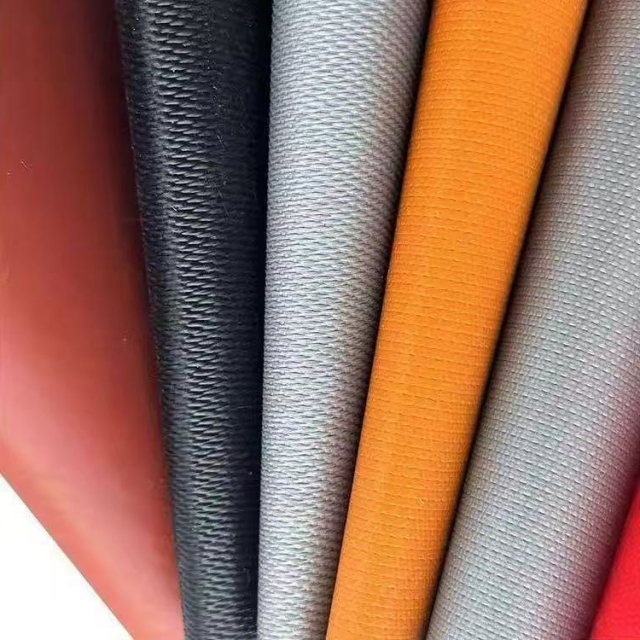

| Color | Gray, red, white, black, blue, green, yellow, orange, etc |

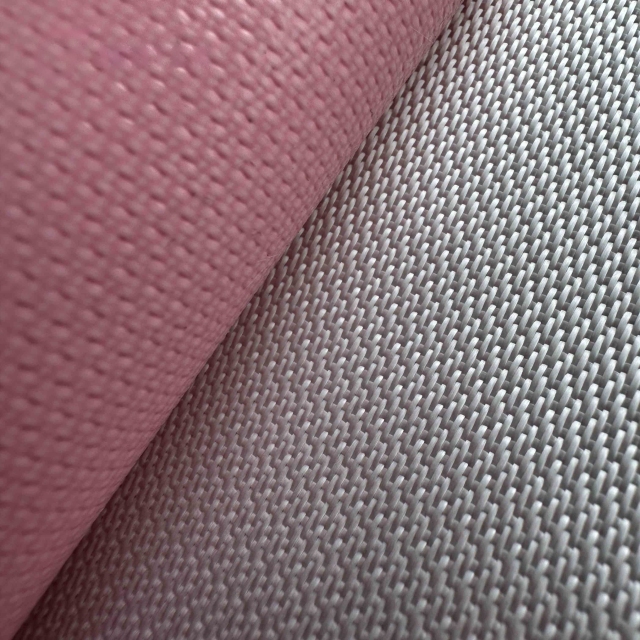

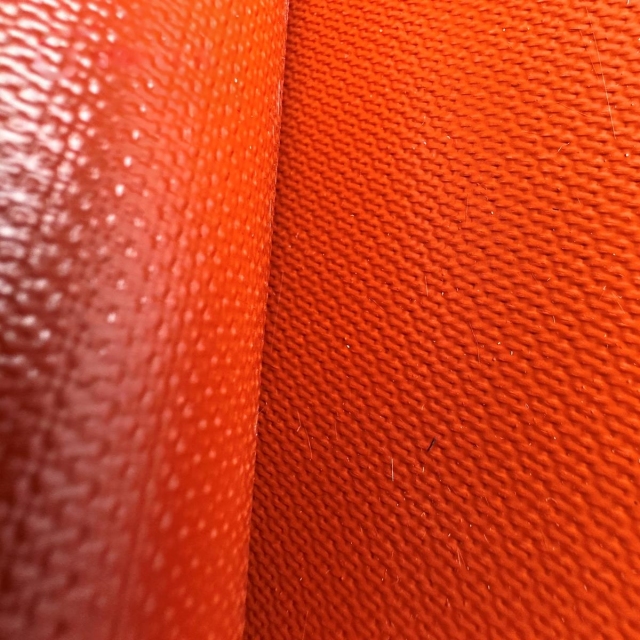

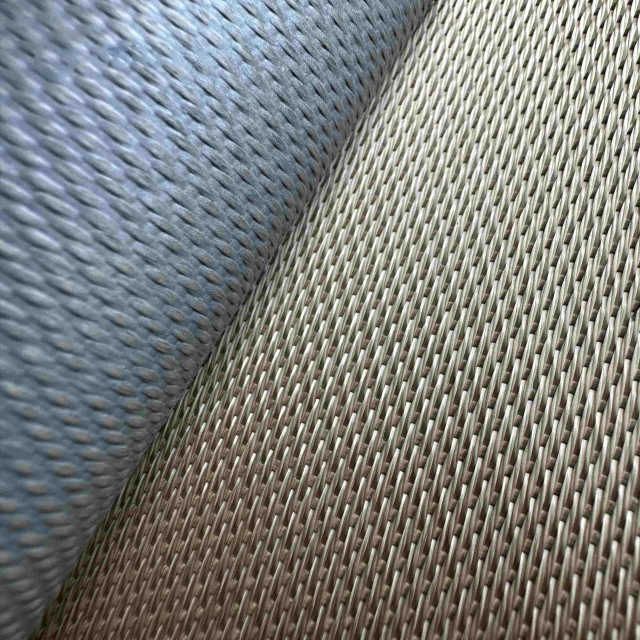

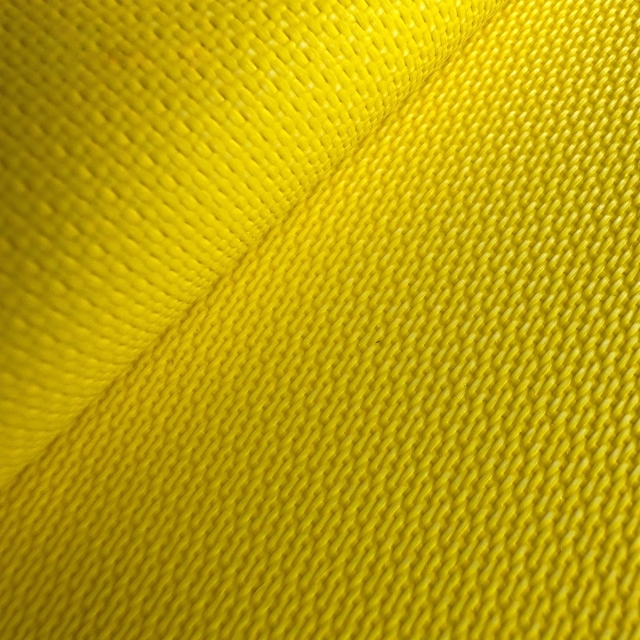

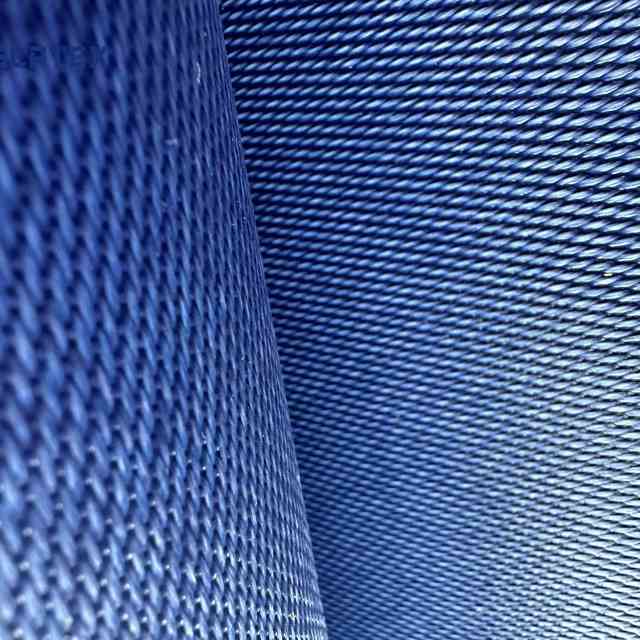

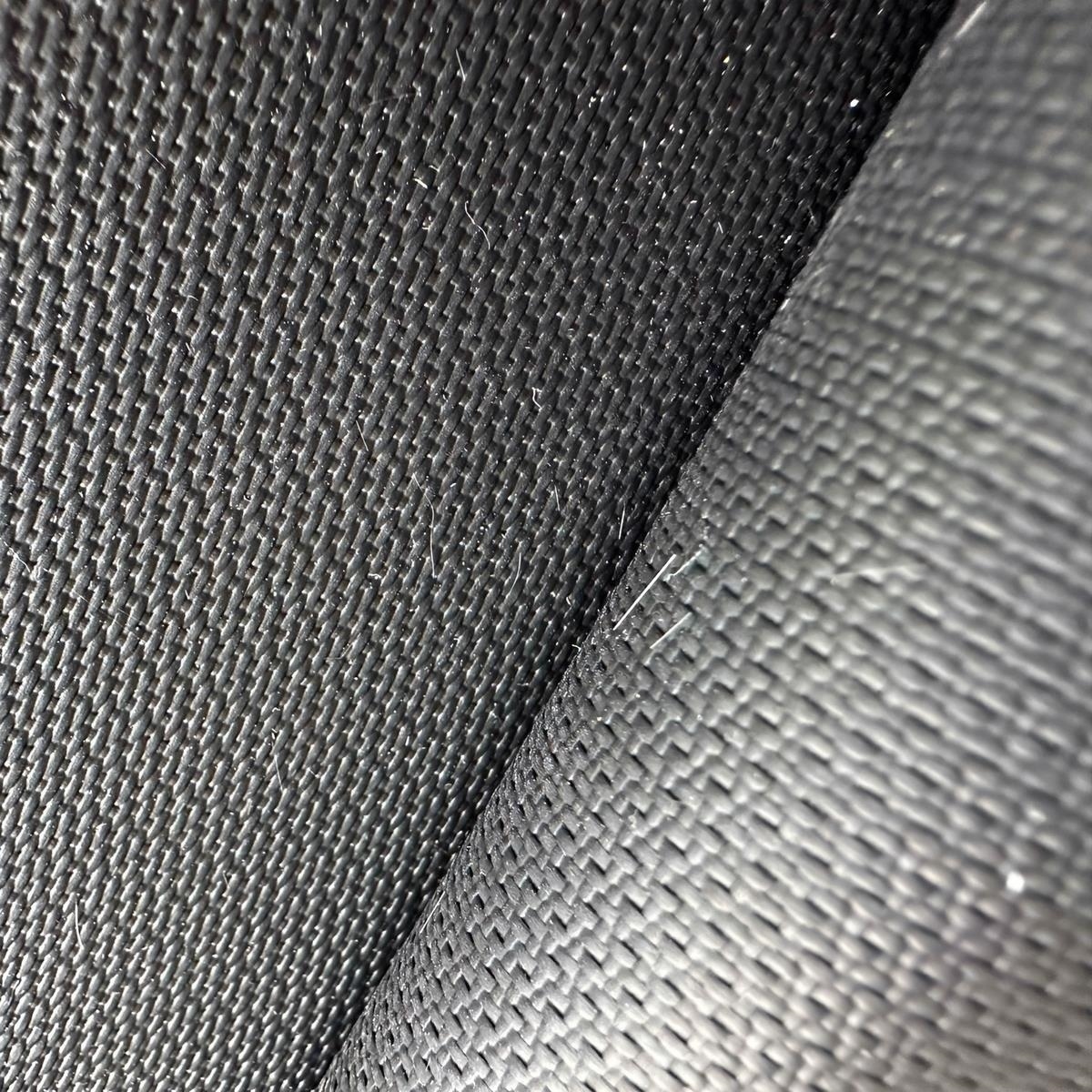

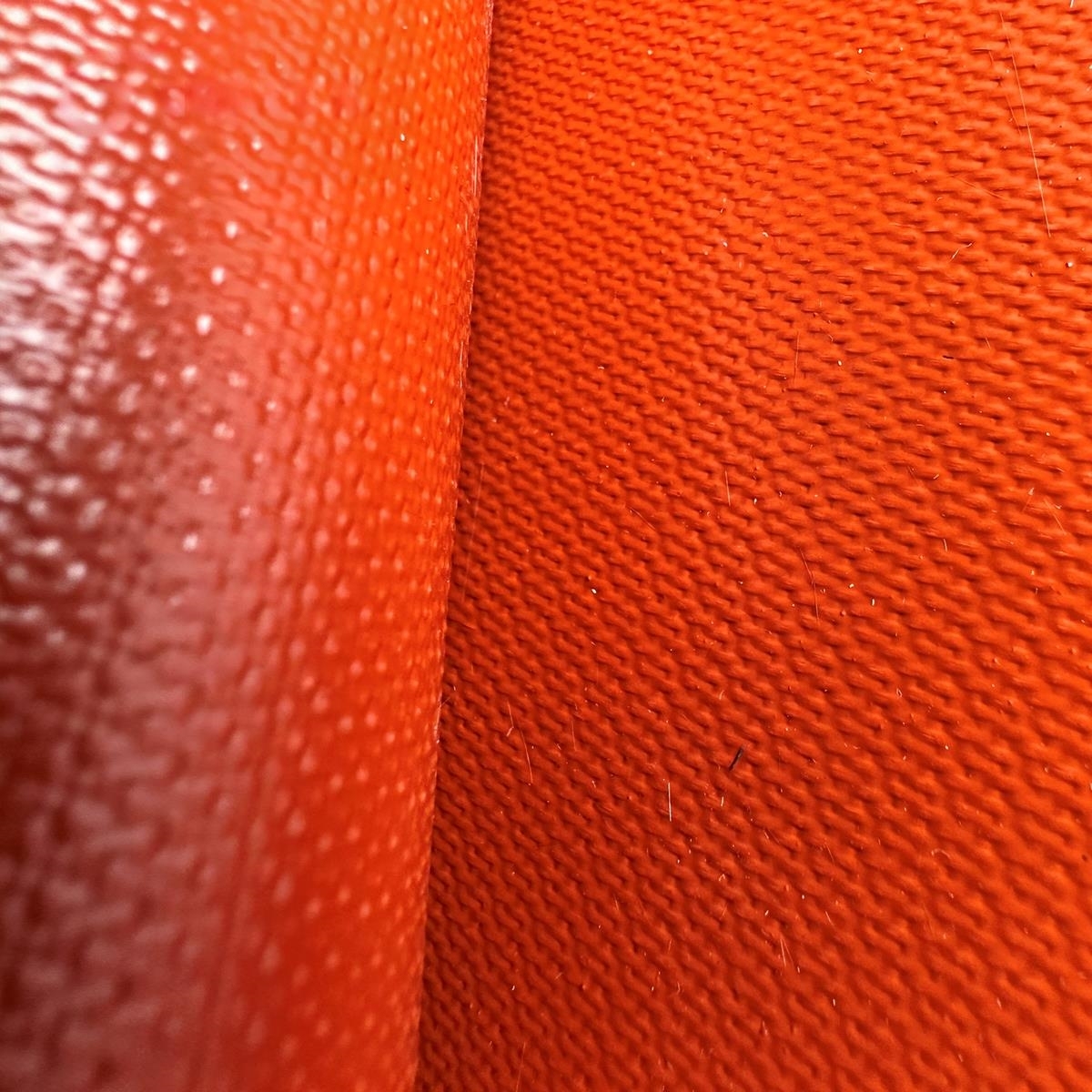

| Weaving Pattern | Plain, twill or satin weave. |
| Unit Area Weight | 250g/㎡-2200g/㎡, including coating). |
| Thickness | 0.2 mm (0.008 in) to 2 mm (0.08 in); customizable. |
| Size | Standard: 1m × 50m per roll; customizable. |
| Temperature Resistance | – Coating: 500°F (260°C) for continuous use. |
| – Base Fabric: 1022°F (550°C) for continuous use. | |
| – Short-term Exposure: Coating can withstand up to 572°F (300°C) momentarily. | |
| Protective Properties | – Flame-Resistant: Coating meets international standards. |
| – Waterproof: Excellent water resistance. | |
| – Oil and Chemical Resistance: Suitable for oil and chemical-rich environments. | |
| Abrasion Resistance | Enhanced by silicone coating, suitable for frequent mechanical contact. |
| Anti-Aging Properties | – Excellent UV resistance for long-term outdoor use. |
| – Strong oxidation resistance for extended service life. | |
| Flexibility | High; suitable for folding, rolling, and use in complex environments. |
| Water Permeability | None. |
| Applications | Ideal for fire-resistant, waterproof, and chemically-resistant welding and insulation operations, as well as humid, oily, and chemical environments. |
| Application Area | Specific Uses | Key Advantages |
|---|---|---|
| 🔥 High Temperature & Fire Protection | Welding blankets / welding curtains, industrial / new energy (EV) fire blankets, fire curtains, smoke baffles | Withstands instantaneous high temperature (up to 550℃+), blocks fire and oxygen, prevents molten splashes and sparks |
| 🔧 Thermal Insulation Systems | Outer layer material for removable insulation jackets/covers for pipes, valves, flanges and industrial equipment | Protects internal insulation, waterproof, oil-resistant and anti-aging, reduces heat loss and safety risks |
| 💨 Flexible Connections & Expansion Joints | Flexible duct connectors, base material for non-metallic expansion joints (compensators) | Absorbs thermal displacement and vibration of pipelines, excellent air tightness and fatigue resistance |
| ⚙️ Industrial Protection & Sealing | Engine heat shields, high-temperature gaskets, outdoor equipment waterproof covers, corrosion-resistant gaskets | Chemical resistant, weather resistant, tear resistant, suitable for harsh working conditions |
| ⚡ Electrical Insulation | High-temperature insulation cloth, sleeves, insulation materials for motors / electrical appliances | High insulation strength, stable electrical performance at high and low temperatures |
| 🌊 Corrosion Protection & Marine | Internal and external anti-corrosion layers for pipelines, marine engine insulation, marine equipment protective covers | Salt spray resistant, corrosion resistant, water resistant, extends service life of equipment |
| 🏗️ Construction & New Energy | Architectural membrane structures, photovoltaic backsheets, fire barriers for power batteries | UV resistant, flame retardant, suitable for new energy and green building applications |
